Motorola NMN6191 b/c and NMN6193 b/c speaker/microphone

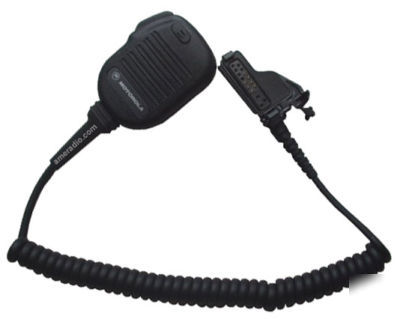

Motorola NMN6191C Remote speaker microphone
FACTORY MUTUAL APPROVED ONLY WITH THE MT2000, MTS2000, HT1000, JT1000,
MTX-LS, MTX9000, XTS3000, XTS3500 AND THE MTX838, MTX8000 SERIES RADIOS.
Users in other countries - check local approvals
Motorola original accessory. High quality and durability product.
Included 6' Coiled Cord Assembly, 3.5mm threaded earphone jack located on top of accessory connector,
swivel clip, quick disconnect.
The NMN6191 Remote Speaker/Microphones includes a speaker, microphone,
and push-to-talk (PTT) switch. This remote speaker/microphones includes a 3.5mm earphone jack
located on top of the accessory connector. A seal, which is attached to the accessory connector, is provided to
cover the earphone jack when it is not in use. The NMN6191 Remote Speaker/Microphone includes a
noise-cancelling port that reduces background noise during transmit.
When the remote speaker/microphone is attached to the radio, the speaker in the radio is disabled, and the
receiver audio is connected to the accessory speaker. Similarly, the accessory microphone is connected to the
transmitter, and the accessory PTT switch can now control the PTT function of the radio. The radio
microphone and PTT switch are still operational, but since the radio speaker is disabled, you can listen to the
received audio only through the accessory speaker. volume control on the radio to a loud, yet
undistorted, position. Without disturbing any settings, repeat these conditions using the
speaker/microphone to be tested. Good units should sound equally loud and undistorted.
Use of non-FM approved earpieces will invalidate the FM approval of the remote speaker/microphone.
Factory Mutual Approval (Limited FM C-D)
Swivel Clip, and quick disconnect latch, water resistant compact, noise cancelling.
