Noyes opm 1-2C & gn nettest lp-5150 mm fiber test kit
* Noyes OPM 1-2C Optical Power Meter
* GN Nettest LP-5150 MM Laser Source
* Interchangeable SC Connector For Power Meter

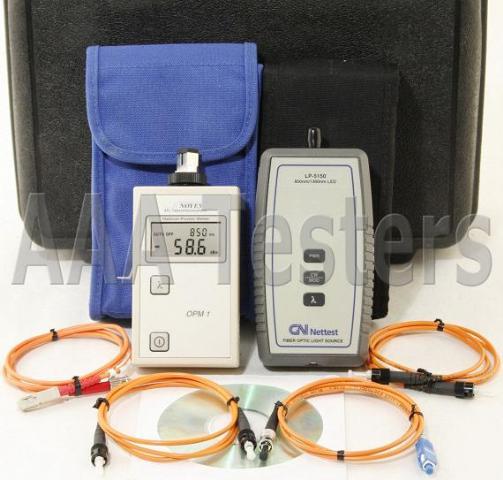

NOYES OPM 1-2C Optical Power Meter & GN Nettest LP5150 Multimode Laser Source
This portable optical power meter may be used to measure optical power in premises, telco, or broadband fiber optic networks. When used with an LED or laser light source, the OPM 1 can also measure the attenuation (insertion loss) of multimode or single-mode cables. With only two controls ON/OFF and wavelength the OPM 1 is our simplest to use optical power meter. Optical power in dBm and the calibration wavelength setting are displayed on an easy-to-read LCD display. The optical input port accepts Noyes thread-on style connector adapter caps. Adapter caps are required and must be ordered separately. The OPM 1 is fully N.I.S.T. traceable and runs on a standard 9-volt alkaline battery.
* The OPM 1-2C is calibrated at 850, 1300, 1310, and 1550 nm for testing LAN, Ethernet, FDDI, Token Ring, and single-mode fiber systems such as Telco, WAN, and CATV.
* The OPM 1-3C also operates at 850, 1300, 1310, and 1550 nm but offers greater temperature stability needed for outside plant 1550 nm testing as with WAN, CATV, and Telco systems.
* Premises (Ge) and broadband (InGaAs) models
* Displays optical power (dBm)
* Our simplest to use optical power meter
Typical 60 hours with 9V battery
order separately (ST, SC, FC, and others available)
5.5 x 3.2 x 1.5 in (14.0 x 8.1 x 3.8 cm)
GN NETTEST LP-5150 850/1310nm Modulated LED Light Source
* Power Output depends on type of cord
