Angle plate step toolmaker machist tapped 1/4 ground qa

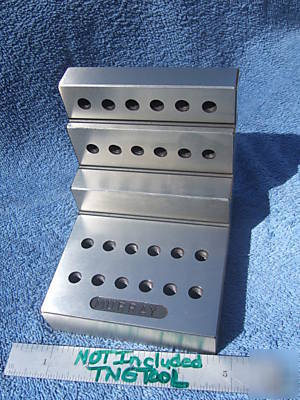

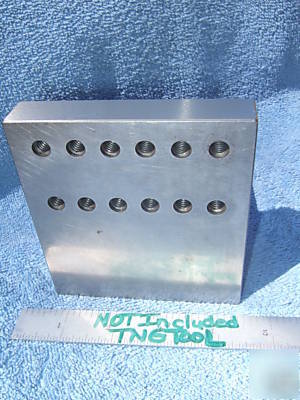

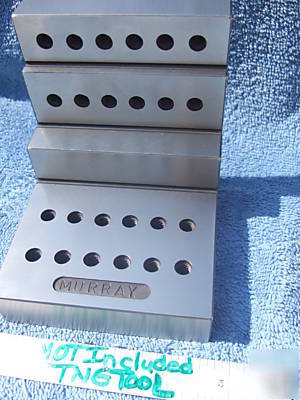

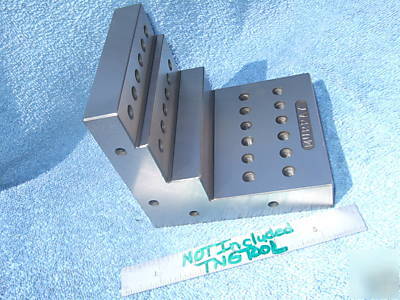

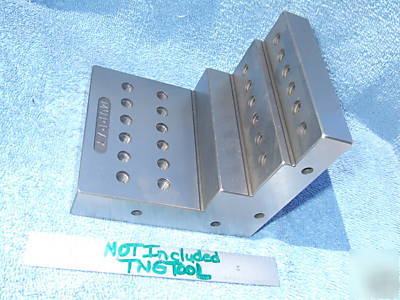

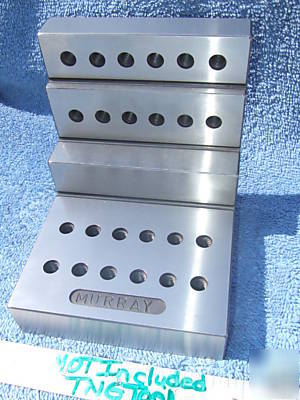

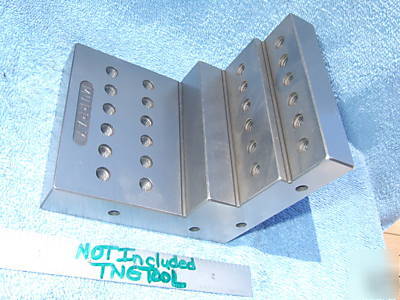

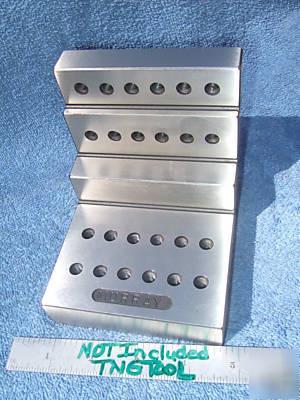

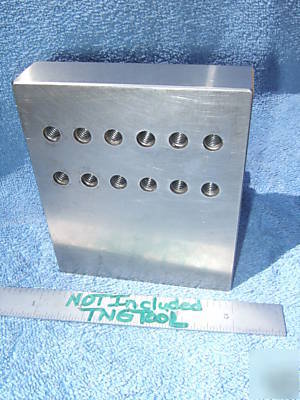

ANGLE PLATE WITH STEP IN EXCELLENT SHAPE AS SHOWN. I HAVE SEVERAL ANGLE PLATES LISTED THAT ARE VERY CLOSE TO EACH OTHER IN OVERALL SIZE. SEE MY OTHER ANGLE PLATES. CHECK THE SUPER SIZE PICS ! PLATE MEASURES 3.918" WIDE X 4.658" TALL X 4.250" TALL. PERFECT SIZE FOR BRIDGEPORT OR SURFACE GRINDER WORK! ANGLE BLOCK HAS (32 TOTAL) TAPPED 1/4" X 20 HOLES IN FACE'S AND SIDES AS SHOWN.
STEPS MEASURE .256" X 1.000" FROM TOP DOWN AS SHOWN. BOTTOM STEP IS .763" X .936" WITH PRECISION GROUND CHAMFERS ALL OVER. BLOCK HAS BEEN FRESHLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK AND PRECISION CHAMFERED. ALL TAPPED HOLES LOOK TO BE IN GREAT SHAPE WITH NOTHING BROKE OFF IN THEM OR ANY CHIPPED HOLES.
