Deckel so tool cutter grinder machine mill milling 9G's

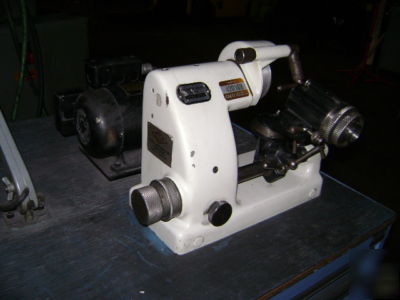

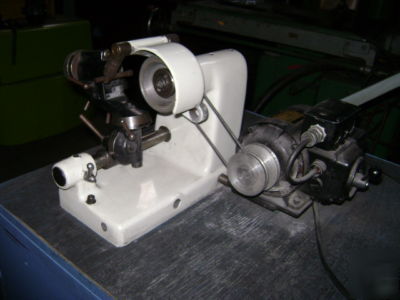

Deckel SO cutter grinder machine.
5 collets ,wheel wrench, dia. cup grinding wheel
http://www.michael-deckel.de/index.php?page=1011&nmWebSite=8b85eda7045dd8a3e096c371841989dc
Single-lip cutter grinder S0 - the small powerful machine
The S0 is our proven basic model, whose careful finish and solid machine design guarantee long-term precision - even after being through many years of hard workshop use.
With the S0, you can grind single-lip cutters with any shapes of cutting edges, punches, twist drills, turning and shaper tools, feelers, centre points, electrodes and a lot more items.
Such obtainable multitude of shapes is based on versatile swivelling and adjusting possibilities and their ease of operation.
With a magnification of 1:20, it is particularly suitable for smaller tools with narrow tolerances, can be left attached during the grinding process and, in addition, gives information on the surface quality of the cutting edge.
Just to slip onto the indexing head and to facilitate quick and easy cylindrical grinding without going into contortions.
Twist drill grinding attachment
A useful device for grinding 3 to 18 mm diameter twist drills with point angles from 90 to approx. 120 . Relief angle adjustable as desired.
Proven "DECKEL" design with 20 mm shank diameter and S20x2 buttress screw thread.
Clamping range: 0.5 to 18.0 mm (in increments of 0.5 mm), inch sizes, and as square collets.
Halogen lamp / grinding wheels / grinding wheel attachment chuck / dressing diamond / manual diamond lapping tool / collet stop / dust extraction spare filter / grinding grease / power supply cord with plug
