Innovaction jazz 100 fm stereo exciter

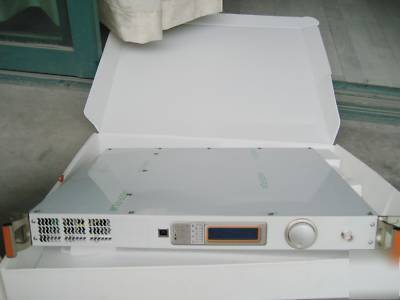

Innovaction JAZZ 100 FM STEREO EXCITER
5 items, all are completely new in original package
FM STEREO EXCITER JAZZ 30-50-100-150W
Power Output: 30-50-100-150 W adjustable from front panel.
RF Output Connector: N type.
Monitor RF: -54 dBc, BNC connector
VSWR: 1.5:1 Maximum with automatic fold-back at higher VSWR
Frequency Range: 87.5 108.00 MHz, on request 66 74 MHz ( OIRT), 76 90 MHz (JPN) Programmable in 10 KHz steps.
Frequency Stability: 1 ppm from -5 to 45 C.
Reference: TCXO 12.8 MHz. Can be syncronized by 1-2-2.5-5-10 MHz self select external clock (option).
Frequency Control: Synthesizer processor control.
Type of Modulation: Direct frequency modulation of carrier frequency.
Off Lock Attenuation: = -80 dBc.
Modulation Capability: 150 KHz.
Modulation Mode: Mono, Stereo, Multiplex, SCA, RDS, Aux.
Preemphasis: Flat/50/75 s selectable from front panel.
Asynchronous AM S/N Ratio: -70 dB below reference carrier with 100% AM modulation @ 400 Hz, without FM modulation.
Synchronous AM S/N Ratio: -65 dB below reference carrier with 100% AM modulation @ 400 Hz with FM modulation 75 KHz @ 400 Hz.
RF Harmonics: Exceeds EBU/CCIR/FCC requirements.
RF Spurious: Exceeds EBU/CCIR/FCC requirements.
Audio Input Impedance: 600 ohm balanced, 10 Kohms unbalanced.
Audio Input Level: -3 to +9 dBm.
Audio Frequency Response: 0.15 dB, 30 Hz to 15 KHz.
Total Harmonic Distortion + Noise: 0.03% @ 400 Hz
Intermodulation Distortion: 0.03%, 1 KHz/1.3 KHz, 1:1 ratio
Transient Intermodulation Distortion: 0.03%, 2.96KHz square wave and 14 KHz sine wave.
Distortion: 0.03%, 2.96KHz square wave and 14 KHz sine wave.
FM S/N Ratio: -89 dB RMS detector,-85 dB below 75 KHz deviation, 50 s deephasis, weighted.
Composite Input Impedance: 1.2 Kohm unbalanced.
Composite Input Level: -3 to +6 dBm
Composite Amplitude Response: 0.2 dB, 30 Hz to 100 KHz.
Transient Intermodulation Distortion: 0.03%, 2.96 KHz square wave and 14 KHz sine wave.
FM S/N Ratio: -89 dB RMS detector, -85 dB below 75 KHz deviation, 50 s deephasis, weighted.
Audio Input Impedance: 600 ohm balanced, 10 Kohm unbalanced.
Transient Intermodulation Distortion: 0,03%, 2.96 KHz square wave and 14 KHz sine wave.
FM S/N Ratio: -79 dB RMS detector, -75 dB below 75 KHz deviation, 50 s deephasis, weighted.
Stereo Separation: 30 80 Hz = -53 dB, 80Hz 15 KHz = -65 dB (Typ. 70 dB).
Crosstalk attenuation: Main to Sub -40 dB 30 Hz to 15 KHz (typ. -55 dB 100 Hz to 8 KHz).
38 KHz Suppression: = -70 dB (typ. -85 dB).
Pilot Frequency: 19 KHz 1 Hz
Output Pilot: 1 Vpp., BNC female
Audio Filter Attenuation: = -55 dB @ 19 KHz, > -45 dB 20 KHz to 100 KHz.
Modes: Stereo, Mono L+R,mono L, mono R.
Input Connector: XLR female, optical TOS-LINK.
Data Format: S/PDF,AES/EBU, IEC958, EIAJCP340/1201.
Sampling Frequency: from 32 to 96 KHz.
Frequency Response: 0.2 dB, 40 KHz to100 KHz.
Input Connector: BNC female. Most SCA, RDS, AUX, performance parameters are determined primarily by the generator used.
USB: connector Type B female front panel.
N 2 RS485: Serial Interface connector RJ45 back panel.
Telemetry Interface: connector DB25F back panel.
External Clock: connector SMA female (option).
External clock: for PLL synchronizing purpose 1-2-2.5-5-10 MHz external reference oscillator with self selection of the incoming frequency.
RDS/RBDS Coder programmable via PC.
AC Input Power: 90 260 VAC 50/60 HZ single phase.
AC Apparent Power Consumption: 70VA @ 30W, 90VA @ 50W, 220VA @ 100W, 300VA@ 150W.
Cooling: Forced air with internal long life brushless ball bearing fan.
Acoustic noise:< -56 dBa @ 1 meter.
Operating temperature: -5 C to +45 C.
Guaranteed performance temperature: 0 C to +40 C.
Max Operating Altitude: 2000 mt.
Relative Humidity Range: 0 to 90%.
Mounting: Standard 19 chassis 1 U rack.
Size: 485 mm. W x 385 mm. D x 44 mm. H.
