Leviton lt almond pir us motion occupancy sensor switch

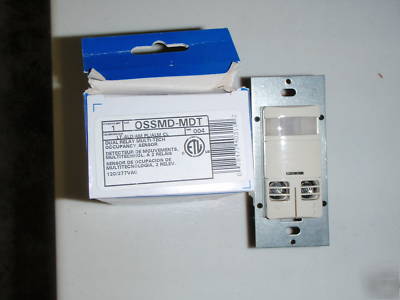

Leviton OSSMT-MDT light almond occupancy sensor. Combines passive infrared and ultrasonic technologies to provide maximum sensitivity with immunity to false triggering. Designed for "install and forget" use; automatically analyzes room conditions and adapts to errors or changing environment. Ideal in ofces, conference rooms, storage areas, restrooms, classrooms and lounges. Features include:
* Manual-ON/Auto-OFF setting for CEC Title 24 compliance
* Self-adaptive technology: callbacks for adjustment are eliminated. Time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
* Exclusive walk-through feature: provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
* Fast, simple installation: fits in a standard wall box and replaces a single-pole wall-switch; neutral and ground connection required. Sensor can be ganged together with other units in a multiple-switch wallplate
* Convenient push-button switch: Provides manual ON/OFF light switch at any time
* Ambient light override prevents lights from turning ON when there is ample natural light
* Manual delayed-OFF time settings (30 seconds to 30 minutes)
* 180 eld of view, 1200 sq. ft coverage
* Ratings: 800W @ 120V incandescent/tungsten; 1200VA @ 120V, 2700VA @ 277V fluorescent; 1/4HP @ 120V motor load
* True zero-cross relay: switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts.
* Adjustable horizontal field of view (PIR): May be adjusted between 180 degree and 32 degree of arc by using integral blinders located on either side of the lens.
* Small motion sensitivity (US): the ultrasonic technology provides excellent small motion sensitivity.
* Optional Manual Adjustments for Delayed OFF Time Settings: Allows customized adjustments to maximize energy savings
* Elegant Decora styling; uses Decora wallplate (sold separately)
