New devlieg 43K-72 completely rescaped 2009 cnc 4 axis

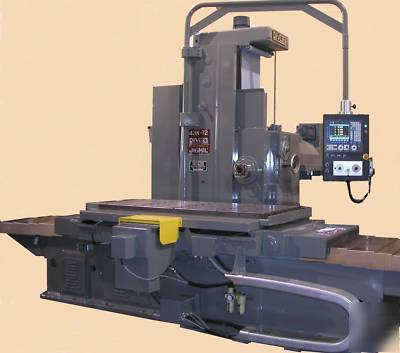

Model 43K-72 DeVlieg JIGMIL, Serial No. 9941
(4 Axis Servo with Fagor 8055i CNC control)
Original Manufactured Date November 1978
Diameter of bar ..................................................................... 4.0000"
Table Size ............................................................................. 40" x 72"
Taper in nose of spindle bar ................................................. #50 NMTB
*Length of bar feed (Z axis) ................................................. 19"
Vertical travel (Y axis) .......................................................... 48"
Horizontal travel (X axis) ..................................................... 72"
Retraction range of table on saddle (W axis) ....................... 20"
**Spindle speeds (19) .......................................................... 14 - 1450 RPM
Milling feedrates (X) and (Y)................................................ 0.1 to 200 IPM
Feedrates (W) and (Z) ......................................................... 0.1 to 100 IPM
Rapid traverse rates (X) and (Y) ......................................... 200 IPM
Rapid traverse rates (W) and (Z) .......................................... 100 IPM
Spindle drive motor ............................................................. 15/7-1/2 HP
Weight .................................................................................. 49,000 lbs.
* Z axis is selectable for use as servo or can run in the old manual bar feed function where you select the bar feed range from the dial.
** The spindle head has 19 spindle speeds and can be selected from the standard rotary hand dial or via the control using S codes.
1. This machine was completely rescraped to new machine alignments in 2009.
2. The spindle head was completely disassembled, cleaned and all bearings, seals and parts found damaged or in need of replacement were replaced. A new main head pump was installed with a new Continental heat exchanger, hoses, hydraulic lines and fittings.
3. The spindle bar and sleeve was reconditioned including the following:
o Draw polish the O.D. of the spindle bar for appearance only.
o Regrind the taper socket to ensure that there are no high spots to interfere with the
performance of spindle tooling during operation.
o Recondition the spindle sleeve including installation and I.D. grinding of new bushings.
o Fit the new spindle sleeve bearings.
4. New precision preloaded ball screws were installed on all axes including new quad pack ball screw bearings W, Y & Z axes. X axis bearings are of the DeVlieg original design.
5. New way covers were installed on the X axis.
6. A new Turmoil Refrigeration unit was installed to control spindle head temperature.
7. A new Trabon way lubrication unit was installed.
8. The machine was completely painted with Imron Epoxy Enamel. (Light machine tool gray)
9. New saddle pocket covers, way wipers and scrapers were installed.
The machine has been completely rewired including new motor starters, column mounted enclosure with air conditioner, sealtite, fittings, wire, disconnect circuit breaker and new documentation.
The operators control station is pendant mounted.
