> New square d motor control center mod 6 9 verticals

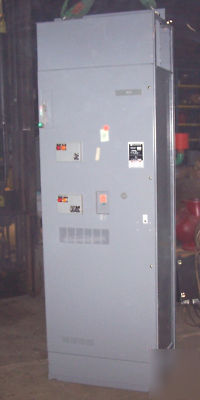

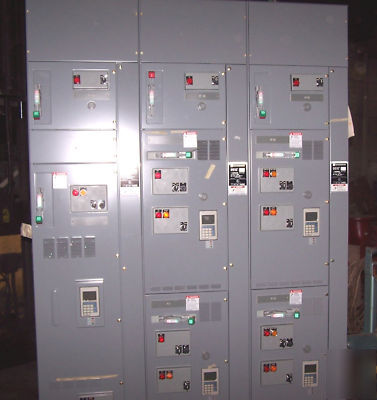

New square d motor control center mod 6 9 verticals

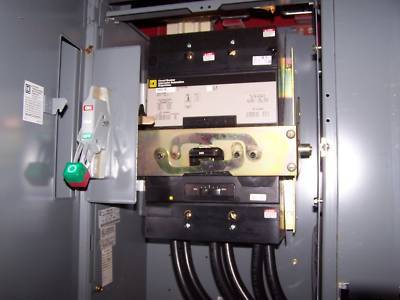

800 AMP MAIN BREAKER ( MHL36800 )
800 AMP HORIZONTAL BUS 300 AMP VERTICAL BUS

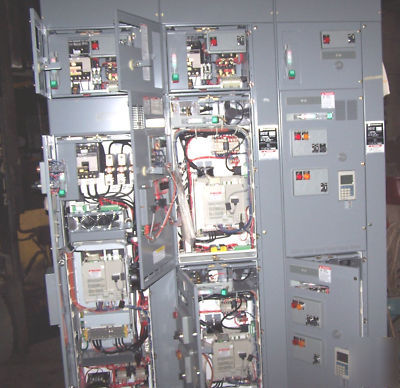

FROM LEFT TO RIGHT DESCRIPTION BELOW

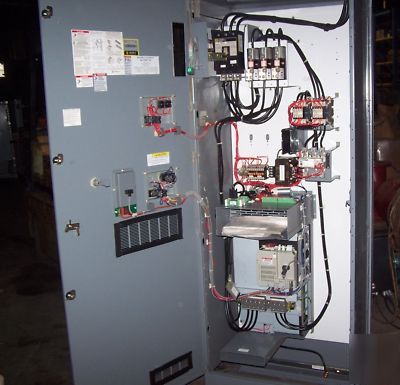

60 Hp ALTIVAR VARIABLE TORQUE DRIVE WITH BYPASS

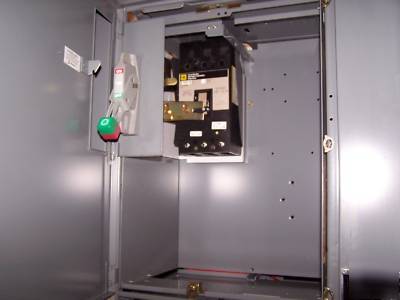

175 AMP CIRCUIT BREAKER ( KCP34175 )
150 AMP CIRCUIT BREAKER ( KCP34150 )
60 Hp ALTIVAR VARIABLE TORQUE DRIVE
250 AMP CIRCUIT BREAKER ( KCP34250 )
40 Hp ALTIVAR VARIABLE TORQUE DRIVE WITH BYPASS

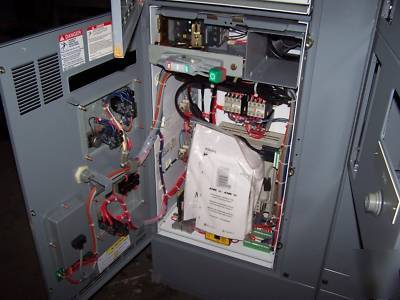

1) SIZE 1 STARTER WITH 7 AMP BREAKER
2) 15 Hp ALTIVAR VARIABLE TORQUE DRIVES WITH BYPASS
2) 2 Hp ALTIVAR VARIABLE TORQUE DRIVES WITH BYPASS
1) 200 AMP CIRCUIT BREAKER FEEDER BUCKET KCP34200
1) SIZE 1 STARTER WITH 30 AMP CIRCUIT BREAKER
1) SIZE 1 STARTER WITH 7 AMP CIRCUIT BREAKER
1) SIZE 1 STARTER WITH 3 AMP CIRCUIT BREAKER
