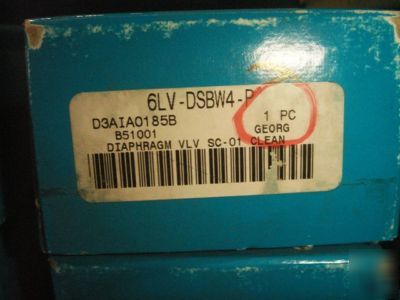

Swagelok diaphragm valve: 6LV-DSBW4-p

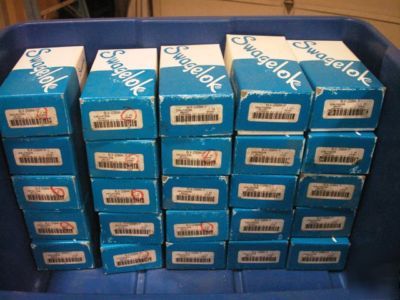

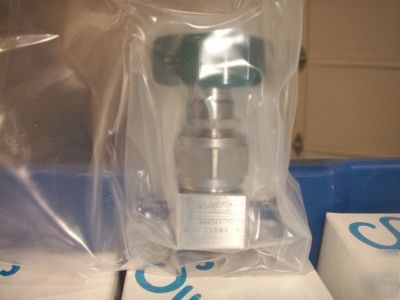

New Swagelok UHP Diaphragm Valve - DS Series 1/4" Manual Valve with Round Handle
Description: 2 Port, Round Handle Springless Diaphragm Valve, 316L VAR Body
1/4" Tube Stub x 1/4" Tube Stub Connections
PCTFE Seat, 0.25 Cv, SC-11 Cleaning Spec
Street Price from a Parker Distributor: $249.75
The Swagelok manually operated diaphragm valve is a high pressure metal sealed valve engineered to provide reliable performance from vacuum to 3,500 psig at 100'F (2,800 psig at 250'F). The diaphragm is sealed metal-to-metal to the body and a soft seat provides continuous reliable shut off. This enables the DS Series valve to operate in a variety of high pressure, hazardous applications.
* 8 Ra standard surface finish
* 1 and 1/2 Turns from Full Open to Close
* Repetitive shutoff with fully contained softseat stem tip
* Ultrahigh-purity cleaning with a continuously monitored, deionized water, ultrasonic cleaning system
