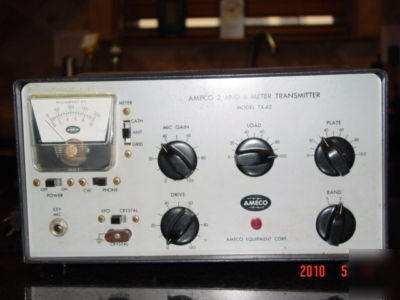

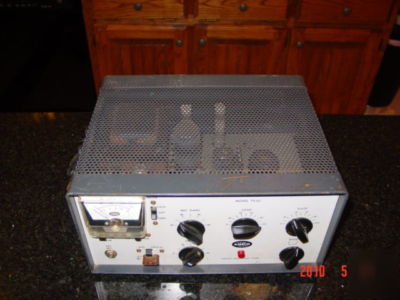

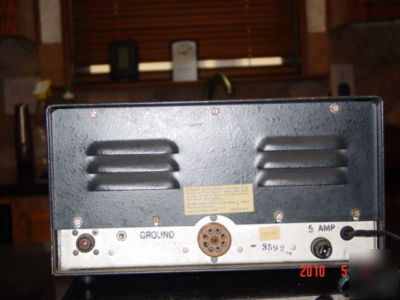

Ameco tx-62 transmitter 2 and 6 meters nice cond
Ameco TX-62 2 + 6 Meter Transmitter Manufactured By The Ameco Equipment Corporation. The Ameco Model TX-62 Transmitter is a compact, convenient, easy-to-operate transmitter for the 6 and 2 meter bands.The TX-62 has 75 watts input on CW and 75 watts peak input on phone.It has a built-in AC power supply and modulator. All exciter circuits are broad banded. Only the final plate and loading capacitors have to be tuned. A potentiometer type drive control is used to set the drive level to the final grid tha final is operated straight through on both bands. The TX-62 uses the low distortion Arneco DUO-GRID modulation Specifications :Frequency Coverage: 50-54Mc and 144-148Mc,Power output to final: CW-75 watts,Phone -75 Watts Peak Tubes And Functions- 6GK6 crystal controlled oscillator and tripler, 6GK6 - doubler,7868-tripler on 2 meters only,7984-final,12ax7-audio voltage amplifier and 6GK6 modulator. Frequency Control: Crystal controlled, using in- expensive 8MC crystals or an external VFO can be used.Other Features Include: A Large Meter,Off/On Power,CathAnt/Grid,Vfo/Crystal,6/2 Band, Cw/Phone Switches,Mic Gain,Load,Plate,Drive Controls,Key/Mic Jack.Size 11-1/2 x 9-1/2 x 6 inches. Weight: 18-1/2 lbs
