Hp 5343A 10HZ-26GHZ frequency counter opt 001 & 011
HP/Agilent 5343A 10Hz - 26.5 GHz Microwave Frequency Counter with 001 High Stability Time Base and 011 Digital Input/Output HP-IB Option

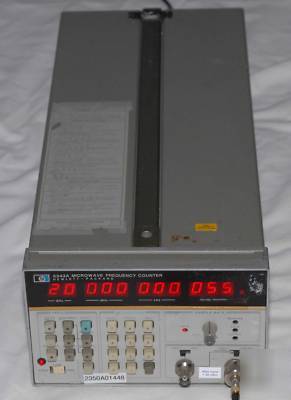

Up for sell is a HP/Agilent 5343A 10Hz-26.5GHz microwave frequency counter with option 001 high stability time base, and option 011 digital input/output HP-IB. The system has been fully tested and is in excellent working condition. The calibration expired but the measurement is still accurate. The picture shows the measured frequency of a 20GHz RF signal from a HP 8341A signal generator. Don't know which unit is more accurate.
The 5343A Microwave Frequency Counter measures the frequency of signals in the range of 10 Hz - 26.5 GHz, Portable size unit with excellent input sensitivity, Wide FM tolerance, Maximum measurable RF input : +7 dBm, Maximum non working RF input: +25 dBm. Impedance: 50 ohms, Input Connector: SMA 3.5mm male with collar. Signals in the frequency range of 10 Hz - 520 MHz are measured by the direct count method. Signals in the frequency range of 500 MHz - 26.5 GHz are down-converted to an IF by a heterodyne conversion technique for application to the counter circuits.
Option 001 = High Stability Time Base
Option 011 = Digital Input / Output (HP-IB)
Power cord and service manual CD are included.
SOLD WITH A 7 DAY RIGHT OF INSPECTION!
