Hp/agilent 1100 series hplc chemstation system

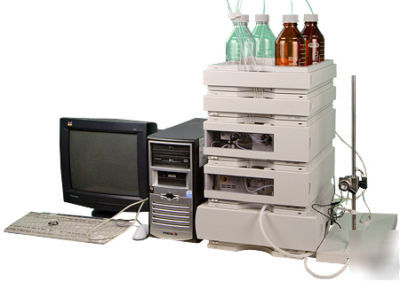

HP/Agilent 1100 Series HPLC ChemStation System
This HPLC ChemStation System includes
- HP/Agilent 1100 Series Variable Wavelenght Detector (VWD) model G1314A
- HP/Agilent 1100 Series Quaternary Pump model G1311A
- HP/Agilent 1100 Series 4-channel Micro-Vacuum Degasser model G1379A
- HP/Agilent 1100 Series Thermostatted Column Compartment model G1316A
Detector Type: Bouble-Beam Photometer
Communication Ports: CAN, GPIB, RS-232C, APG Remote, Ethernet LAN Option
Settable Flow Range: 0.001 - 10 mL/min in 0.001 mL/min Increments
Communication Ports: CAN, GPIB, RS-232C, APG Remote
Bottle Head Assembly, Solvent Cabinet, Inlet/Outlet Tube
Maximum Flow Rate: 0-10 mL/min per channel, 5-10 mL/min at reduced Degausing Performance
Internal Volume: Typically 1mL per channel
Analog output: for pressure monitoring, range 0-3 V
Temperature Range: 10 below ambient to 80 C
Temperature Stability: +/- 0.15 C
Temperature Accuracy: +/- 0.8 C
Column Capacity: Three 30 cm columns
Warm-up/Cool0down: 5 minutes from ambiant to 40 C
Manual Injector Specifications
Connection Capillary: 0.17mm id-500mm
Valve syringe Fixed Needle 50uL
Prosys: Windows XP Professional
Intel Pentium 4 3.20GHz, 504Mb RAM
- Agilent G2175AA rev. A-10-01 Chemstation Software
- Agilent Chemstation Plus User Documentation rev.A.09.xx
- Agilent 1100 Series HPLC Maintenance and repair
- Agilent G1369A Lan Card rev.A-01-02
- Agilent Qualification Wookbook
- Agilent Understanding you Chemstation
- Agilent G2090 Chemstation gor GC System
- Agilent Chemstation for CE Systems
- Agilent Chemstation for LC 3D Systems
- Agilent G2070 Installing your A/D Chemstation
- Agilent Installing your Chemstation
- Agilent 1100 Series LC/MSD Quick Start Guide
- Agilent G1956 LC/MSD System Installation Guide
- Micropak 15 cm x 4 mm Column
1100 Series HPLC ChemStation System
