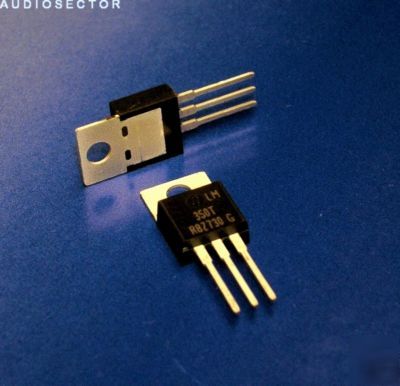

Ic LM350 adjustable 3A voltage regulator, floating (X4)
Adjustable 3 Amp Voltage Regulator
Like the LM317, it can FLOAT above Ground for High Voltage Operation
by National Semi, ROHS complient / Lead Free
Adjustable Positive Voltage Regulator
The LM350 is an adjustable three-terminal positive voltage regulator capable of supplying in excess of 3.0 A over an output voltage range of 1.2 V to 33 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof.
The LM350 serves a wide variety of applications including local, on card regulation. This device also makes an especially simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM350 can be used as a precision current regulator.
-Guaranteed 3.0 A Output Current
-Output Adjustable between 1.2 V and 33 V
-Load Regulation Typically 0.1%25
-Line Regulation Typically 0.005%25/V
-Internal Short Circuit Current Limiting Constant with Temperature
-Output Transistor Safe Area Compensation
-Floating Operation for High Voltage Applications
New stock in anti-static packaging , Lead-Free ROHS compliant
