New - koyo Z1 axis ballscrew 2008DFS3C3-595.5
New - Koyo Z1 Axis Ballscrew 2008DFS3C3-595.5
* This ball screw made by Koyo Machine Industries LTD
* This ball screw is a Hardinge p/n SN0001902Z1

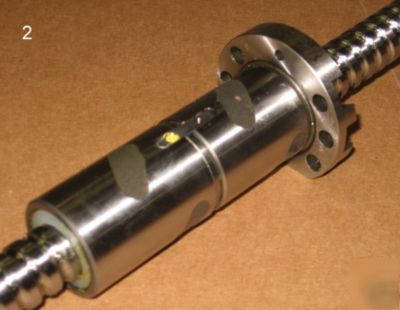

* The center piece (picture #2) is 110mm long and has two section. The large section is 97mm long and 1.379 diameter. The top section is 13mm long, 2.278 diameter and is 2.016 wide on the flat side. It has six mounting holes. The holes are .253 diameter

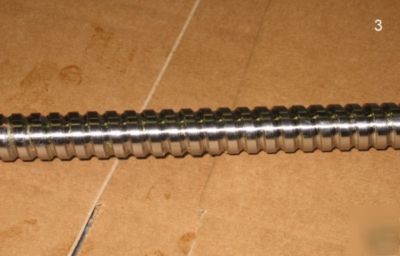

* In picture #3 the screw area is 455mm long. There is a plastic sleeve at each end. The plastic sleeves are 10mm wide and 1.304 diameter

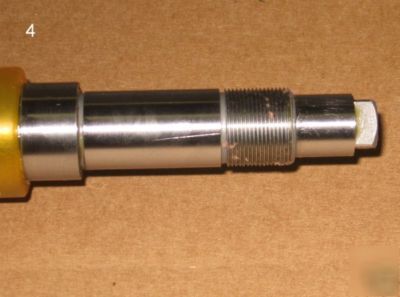

* In picture #4 the end is 90mm long and has five sections. The end section is 5mm long and is .479 square. The second section is 15mm long and is .639 diameter. The third section is threaded and is 18mm long and is .794 diameter. The fourth section is .794 diameter and is 35mm long. The last section is 14mm long and is .993 diameter

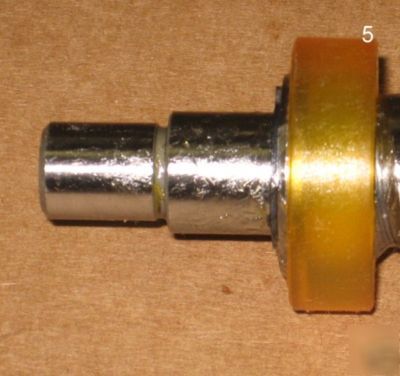

* In picture #5 the end is 30mm long and is has two sections. The end section is 15mm long and .484 diameter. The back section is 15mm long and .591 diameter

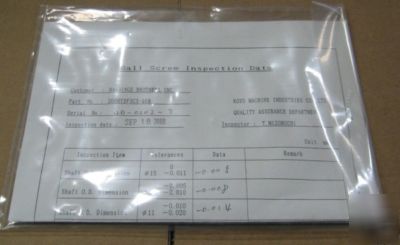

* This ball screw has the inspection sheet

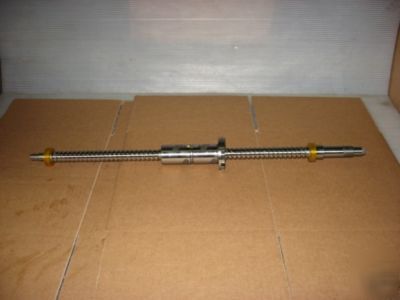

* The overall the ballscrew is 600mm long
