Digital readout dro 3-axis vertical knee mill package

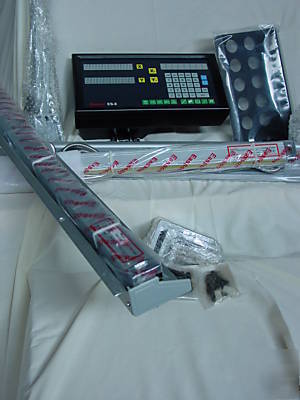

3-Axis Easson ES-8 Digital Readout System for Standard Knee Type Milling Machines (Picture only shows 2-Axis but this is a three axis system for sure witht he third axis on the knee - if you need a third axis for the quill we sell Newall or Mitutoyo for that.)
The ES-8 system includes a three axis display with built in linear power supply, three scale assemblies, related bracketry, mounting hardware, 12 month factory warranty, manuals and related documentation.

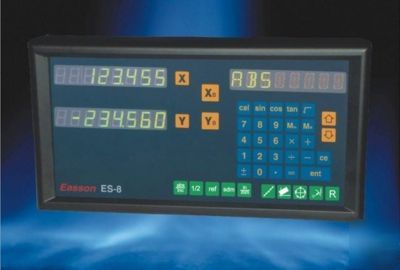

Display hardware features include high noise immunity and EMC design, linear power supply, highly durable polyester front panel membrane by Autotype UK over tactile button switches and bright LED displays, fully sealed design with aluminum casing, ultra low temerature rise transformer.
Function features include zero and go one touch axis zero button, pre-set values, built in trig calculator with results transfer, 199 programmable sub datums, machine zero reference datum, absolute/incremental mode, inch/metric, incline surface function, bolt hole circle, line hole, arc, radius, and linear error compensation. Learn more here: http:// /PDF_Files/ES-8,scale.pdf
GS10 series scales with resolutions of 5 micron or 0.0002"
Pick three of any stock scales(one X-Axis, one Y-axis and one for the knee):
Major or X-Axis; 950mm(37.4"), 900mm(35.4"), 850mm(33.5"), Minor or Y-Axis/Knee; 500mm (20"), 450mm(17.7") or 400mm (16")
- or just call or email to verify availability and fit to your machine. (***) 937-4253 ****@millmaxusa.com
(check the scale dimensions in the install guide linked below especially to consider possible coolant drain hole interference and sufficient mounting space. The scales are called out in actual travel lengths - add 128mm or 5" for mounting hole centers )
Click here for Scale Dimensions and Installation Guide PDF (4MB):
http:// /PDF_Files/ESInstallGS10.pdf
Click here for ES-8 Operation Manual PDF (14MB):
http:// /PDF_Files/ES8Manual.pdf
System includes all brackets and hardware for standard knee type milling machines, display mounting arm and 10pc collet rack, installation and operation manuals, factory warranty paperwork and inspection check.
Also, ask about other brands and consider us for repairing your existing system. We sell and repair all major brands of DRO including Sargon, Acu-Rite, Newall, Fagor, Heidenhain, etc... Our professional service techs can help with repair or installation services on an individual basis, just ask.
