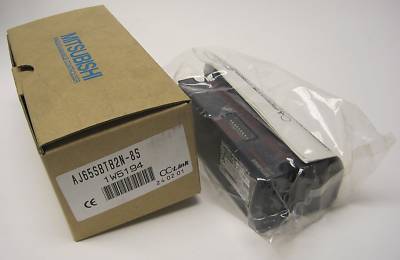

> Mitsubishi AJ65SBTB2N-8S cc-link system i/o mod fs
Mitsubishi AJ65SBTB2N-8S cc-link system i/o mod fs
Item Title: CC Link Remote I/O Module
* Number of output points: 8 points
* Isolation method: Photocoupler
* Rated load voltage: 100 to 240 V AC 50/60 Hz 5 %
* Load voltage distortion rate: Within 5 %
* Max. load voltage: 264 V AC
* Max. load current: 0.6 A/point 2.4 A/common
* Min. load voltage/current: 50 V AC 100 mA, 100 V AC 10 mA, 240 V AC 10 mA
* Max. inrush current: 25 A 10 ms or lower
* Leakage current at OFF: 1.5 mA rms or lower (100 V AC rms 60 Hz),3 mA rms or lower (200 V AC rms 60 Hz)
* Max. voltage drop at ON: 1.5 V rms or lower (when 0.6 A)
* ON OFF 1 ms + 0.5 cycle or lower
* Surge suppression: CR absorber (0.01 F+47 )
* Wiring method for common: 8 points/common (terminal block 2-wire type)
* Number of stations occupied: 1 station 32 points assignment (use 8 points)
