Eltek valere X5000A1 rectifier 48 volt 100 amp

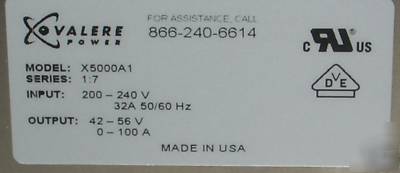

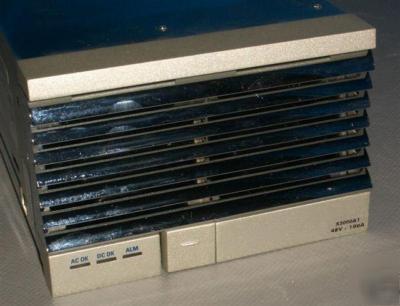

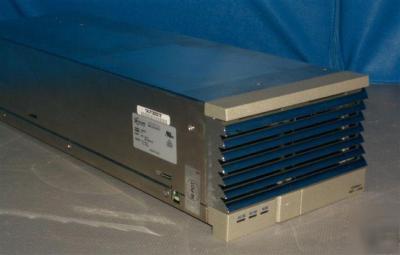

Valere Power 48 Volt, 100 Amp Rectifier X5000A1
Opto-isolated alarms for AC OK, DC OK, Thermal Alarm and Output Disable Command
I2C addressable serial interface
Analog voltage margin of main output voltage
Auxiliary Bias: 12V/200mA independent bias output for system control loads
Redundancy - internal or -ing protection / ESD: EN61000-4-2, level 4 / AC Surge: EN61000-4-4, EN61000-4-5, Level 4
Input Specifications - Universal AC: 90 to 264 Vac / High AC Only: 180 to 264 Vac /
Power Factor: greater than 0.98 for loads above 60% full load
Output Specifications - Noise: 20mV RMS, 10 Hz -20 MHz bandwidth / Regulation: +/- 1% over line, load, and temperature / Efficiency: 92% for 48V units, 90% for 12V/24V units
Nominal DC Output Voltage: 48 / Rated DC Output Current: 100
AC Input Voltage Range: High Line / Airflow: Horizontal / Compact RU2 Size
Dimensions: 16 d x 5.2 w x 3.2 h, approx. 15 lbs. (actual wt)
Full specs: https:// /CSPortal20/KnowledgeBase/DOCUMENTATION/ExternalVendor/ValereProductFlyers0404_Rectifier.pdf
