> Warner & swasey #3A ram type turret lathe, square head

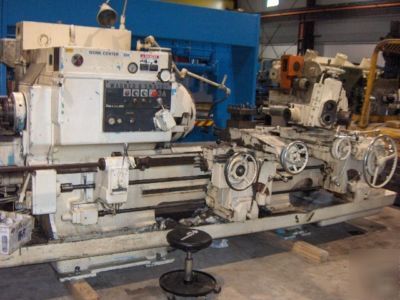

Warner & swasey #3A ram type turret lathe, square head
1-Used Warner Swasey Saddle Type Turret Lathe
Model Number: 3A Square Head, M3500
Serial Number: 2859387 Lot: 855
Max Swing over Bed..................................................... 24
Spindle Speeds.............................................................. 12-851
Spindle thru Hole........................................................... 6 1/8
Carriage Feeds, Cross.................................................... .002-.082
Carriage Feeds, Long..................................................... .005-.167
Turret Feeds, Cross........................................................ .007-.067
Turret Feeds, Long......................................................... .012-.038
Main Motor.................................................................... 30/60 HP, 460V, 3 Ph
Dimensions.................................................................... 18 L x 80 W x 72 H
Weight........................................................................... 17,000 Lbs
6 Dia x 5 L Bar Feed located behind Rear Spindle, 4 Way Tool Post, 2 Vertical Flange Holders, 5 Boring Holders, Cross Sliding Turret, Rapid Traverse to Carriage & Turret, Taper to Carriage, Taper to Turret, Bed Stop to Carriage
Price, FOB Orange City, IA....................................... $24,500.00
