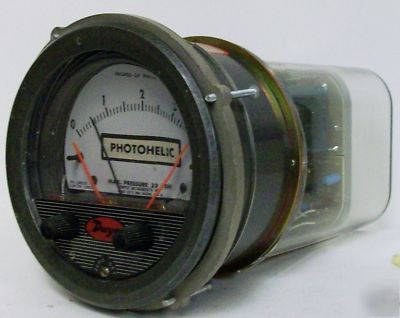

Dwyer type 43004 photohelic gauge switch included
Item Title: Photohelic Gauge and Switch
* Accuracy: 3% of Full Scale at 70 F (21.1 C). 2%
* Pressure Limits: 25 PSIG
* Temperature Limits: 20 to 120 (-6.67 to 48.9 C)
* Process Connections: 1/8" Female NPT.
* Size: 4" (101.6 mm) Dial Face
* Range: 0-4 Inches of Water
* Switch Type: Each Set point Has 2 Form C Relays (DPDT).
* Repeatability: 1% of Full Scale.
* Electrical Rating: 10A @ 120 VAC, 6A @ 240 VAC, 60 Hz res. 10A @ 28 VDC.
* Electrical Connections: Screw Terminals.
* Power Requirements: 120 VAC, 50/60 Hz
* Mounting Orientation: Diaphragm in Vertical Position.
* Set Point Adjustment: Adjustable Knobs on Face.
