Ball valve 2-1/2" stainless steel with actuator, nbv

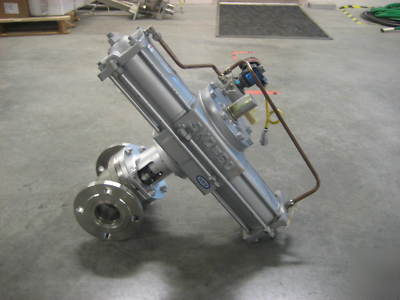

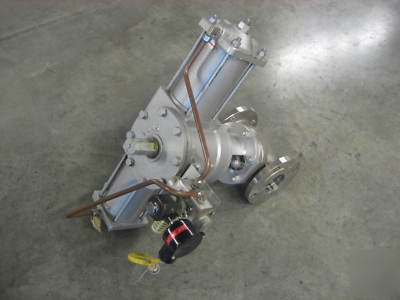

Pneumatic Actuator is a NBV MK-10, and is built specifically for the 1-1/2 Ball Valve. It does not have a Solenoid Valve to control, but has an adapter plate for a mounting a number of centered position port designs. The adapter plate can be drilled and tapped for unique screw size and/or pattern.

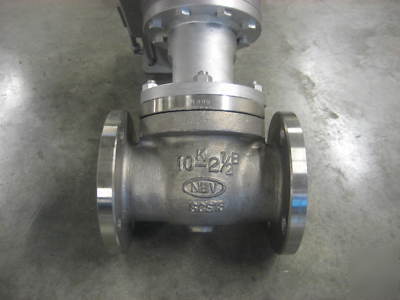

Ball Valve is a NBV 10K2-1/2B SCS13, and has a Stainless Steel Body and Ball with Teflon Seal.
The Valve comes with Flange Mounts 2-1/2 x 5-1/2 with 3/4 Holes @ 5.5 Hole Circle Pattern.
