General scanning gsi AR200 strip chart recorder

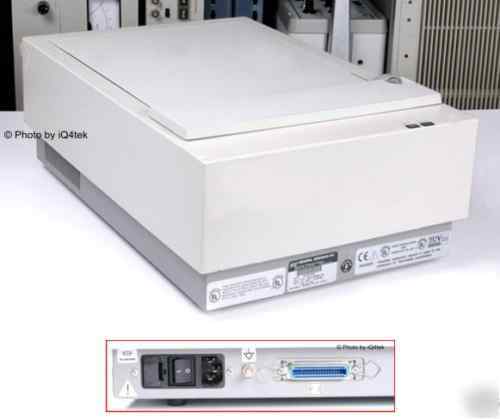

General Scanning GSI AR200 Strip Chart Recorder
Successfully powered up, inspected paper compartment and observed paper advance when lid was closed; noted item was in good cosmetic condition.
The AR-200P is a reliable, easy-to-use, flat-bed recorder with a number of unique operator features. Rugged and reliable, it is at home in a variety of environments, and although it provides 8.5-inch records, it is surprisingly compact.
Outstanding versatility, up to 32 input channels can produce simultaneously-recorded, overlapping waveforms with up to 12 lines of floating annotation. The flat recorder surface aids manual, on-the-fly notation. Text, traces and graphics can print simultaneously, without mode selection. Background grids can be user-designed and stored in printer memory to meet specific data requirements.
Sharp, accurate recording, The AR-200P provides records that are sharp and well-defined, facilitating detailed study and analysis. Its high printing resolution (up to 800 dpi) along the x-axis, together with chart speeds continuously variable from 1mm/hr to 100mm/sec make it possible to create high-definition records of a broad range of physical phenomena. The continuous waveforms are created on smooth, white Z-fold paper that is extremely quick and simple to load, and can be readily stored, filed and handled.
Simultaneous recording of up to 32 overlapping traces, with 12 lines of floating annotation
Chart speeds continuously variable from 1mm/hr to 100mm/sec
Parallel (Centronics-compatible) interface card includes built in buffers to minimize host s CPU time and permit buffering of Windows input data
