New 3" x 3" fabco-air multipower air pneumatic cylinder

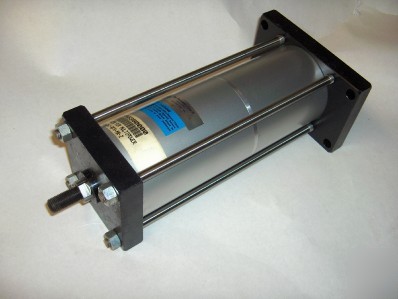

NEW 3" x 3" Fabco-Air Multipower Air Pneumatic Cylinder
Here is a NEW, PERFECT Fabco-Air Multipower pneumatic cylinder. 3" bore x 3" stroke x " rod. A multipower cylinder is unique in that there a 2 pistons in the assembly so that double the normal force is produced in the extending motion. Retracting motion is operated by one 3" piston. Max operating pressure is 150 psi.
Numbers on unit: 53556380000, MP3X3-2-1-RFA-MR-Z.
Great for an application where strong extension force is needed and lower retraction force, saves air consumption. Rod has " removeable threaded stud in end of rod, can be removed to attach your custom equipment. Aluminum construction, with stainless steel tie rods. Has magnetic piston to work with magnetic position sensors.
Overall length to end of rod, less stud, is 10 3/8". Rod end block is 3 " sq. Cylinder end block is 3 " x 5 " with 4 mounting holes. 6 lb. " NPT ports
