New maxi-tronic FM200 flow monitor

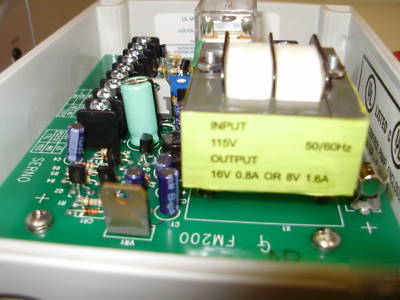

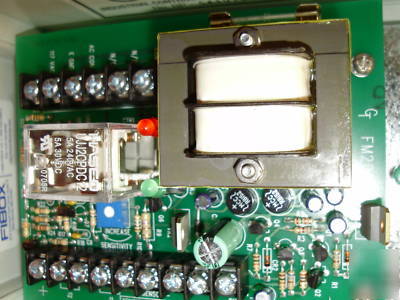

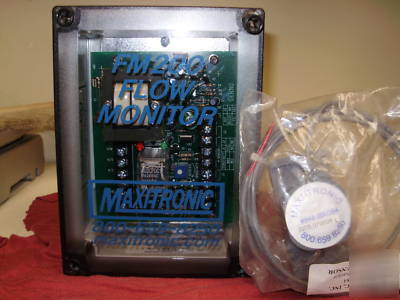

FM200 Control The FM200 Multi-Application Flow Monitor is very effective in monitoring FLOW/NO FLOW conditions in pipes, chutes spouting , etc. Its Sensing Techniques, which use piezo sensor technology, makes the FM200 versatile for almost any FLOW/NO FLOW application. The following are some of the Unique Advances Features that allow this product to exceed the industry standards.
* Monitors movement of most anything through a pipe or chute system (Air-Liquids-Solids)

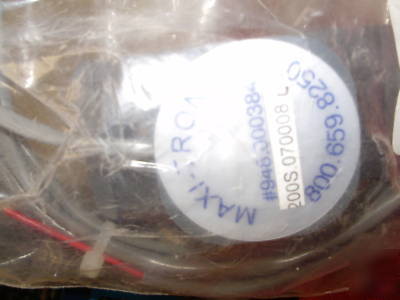

* Sensor externally mounts to the outside of the pipe or chute.
* Senses solids in Pneumatic Air System- (Presence or Absence).
* Adjustable Sensitivity - Per application demand.
* Monitors Pipe System - " to 60" or more.
* RS232 - Low/High/Output
* Relay: -4 Amp - 125 / 250 VAC
* Normally Closed Contact
* 3 User Select Sensitivity Ranges
* Full adjustment of sensitivity across each range.
* Flow (Green)/No Flow (Red)
* Stainless Steel mounting feet
* Mounting Tabs for easy installation
* Prewired with 5' 18ga. 2 conductor wire
* Low voltage 5V DC, 200 MA Maximum
FM200 Sensor MODELS AVAILABLE (With or Without L.E.D. Indicators)
* Available for 12VDC, 24 VAC, 220 VAC
