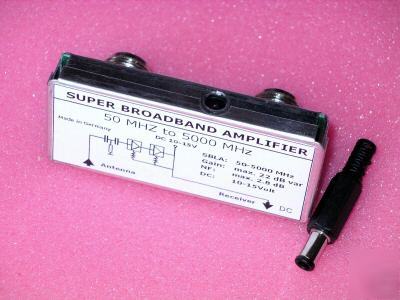

lna broadband 5 ghz 20DB var. gain amplifier scanner
New designed small broadband variable gain wideband low noise amplifier LNA 50 MHz to 5 GHz with high IP3 for best signal reception. The gain of the LNA can be remote controlled by the DC voltage on the coax cable. Best suited for broadband applications like rf-scannes, rf-spectrum analysers etc.
Frequency range: 50 to 5000 MHz
Connectors: N-female 50 Ohm impedance
Typical noise figure: 1.4dB @ 100 MHz
Gain range: - 10 to 23 dB max.
Size 2.9x1.3x0.4 (1.2) inches or 75x34x11(30) mm.
A DC power inserter with N-connectors and integrated on/off switch and tunable DC voltage for gain adjustment is available on request:
An individually measured datasheet of the LNA can be supplied to additional 25 US$ of the final price.
Please allow delivery time of 2 weeks !
