> Agilent wirescope 155 CAT5E multimode fiber certifier
Agilent wirescope 155 CAT5E multimode fiber certifier
* (2) Wirescope Channel Adapters Cat5/5e
* Agilent Fiber Smartprobe+ 1300nm Module
* Agilent ScopeDataPro Database Software

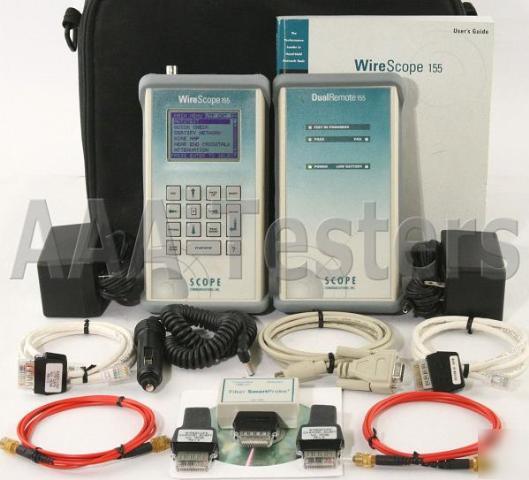

Agilent WireScope 155 LAN Cable Certifier With 1300nm Multimode Fiber SmartProbe Module
Used To Certify Cat5 & Cat5e Cabling Installations Up To 155 MHz
* Tests installed cabling for compliance with TIA 568A Category 5, Category 5E and ISO 11801 Class D specifications. Fully implements TIA TSB-67 requirements, including laboratory-grade level II and level IIE measurement accuracy for basic link and channel.
* Incorporates the new cabling measurements ELFEXT, Return Loss, Delay Skew, and Power Sum that are required by the Category 5E and 1000Base-T specifications.
* The first 155 MHz cable analyzer to fully qualify Category 5 cabling for extended frequency range employed by 155 Mbps ATM equipment.
* Unique Digital Spectrum Analysis (DSA) technology measures network-specific channel response - Provides accurate pass/fail qualification for 20 high speed networking standards in one simple autotest.
* Automatic setup for Basic Link and Channel test configurations - Attaching test probes automatically configure the WireScope 155 for Basic Link or Channel Pass/Fail limits.
* Auto-troubleshooting mode for failing cable runs - WireScope 155 identifies location and cause of probable error sources for quick problem isolation and repairs.
* Simultaneous far end NEXT (Near End Crosstalk) testing with the DualRemote 155. A single 14 second Autotest measures NEXT from both ends of the cable, saving time and ensuring complete test coverage.
* Locally stores 500 cable test reports from multiple test sites. Reports can be printed or uploaded to any Windows-based PC - Nonvolatile memory protects test data without requiring battery power.
* Included ScopeDataPro software can run tests directly from a Windows PC attached to the WireScope 155. Logs full frequency plots for all tested cables when run in this mode.
* Prints professional-quality preformatted graphic test reports, complete with logos and data plots
* Uploads copper and fiber test results from both WireScope 155
* Organizes cable tests by site, building, floor, wiring closet, etc., to simplify record navigation
* Stores test data in Microsoft Access database format
* Can be integrated with popular cable management software solutions
* The software is the ideal system for organizing and analyzing electronic test results for large projects or sites.
Performance Characteristics of the WireScope 155
