Bird ir 3000 bga xbox PS3 ir rework irda reballing pc
DRAGON GROUP CHINA PROUDLY PRESENTS

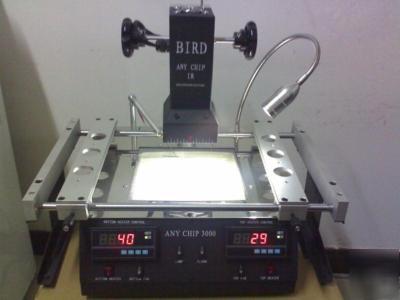

BIRD IR 3000 BGA SPECIAL 80mm CHIP INFRARED SYSTEM
ULTRA MAX REWORK SOLDERING STATION
WITH DGC SMART DIGITAL CONTROL V4.75
INCLUDES 1 YEAR REPLACEMENT PARTS WARRANTY AND D.O.A
WARRANTY IS 100 % COVERED FOR D.O.A. AND MALFUNCTIONS FOR A YEAR NOT D.B.S.
VERY IMPORTANT: THE LAMP NEEDS TO WORK AWAY FROM THE HEAT, IF THE CIRCUIT BOARD IN THE TOP OF THE LAMP TOUCHES YOUR HEAT, IT WILL JUST MELT LIKE ANY CIRCUIT AND STOP WORKING, IF THIS HAPPEN WILL BE YOUR FULL RESPONSIBILITY TO GET A NEW ONE. THE LAMP CANOT HANDLE THE MACHINE HEAT, IS TO PROVIDE YOU WIDE VISION SPECTRUM FROM A DISTANCE, NOT TO FOCUSED UNDER THE HEAT AREA !!!
( ENGLISH MANUAL ONLY - EL MANUAL SOLO EN INGLES POR EL MOMENTO)
WATCH IT WORKING ON A LAPTOP BOARD
BIRD AC IR 3000 Removing Laptop Video Chip - By DGC Media USA - HD
NOW LET'S WATCH AGAIN WITH A XBOX BOARD THIS TIME
BIRD IR 3000 Rework of a Xbox PCB GPU W/ Nets & Bowl- By DGC Media USA - HD
AND A DGC 939 SD+ SOLDERING IRON ( NO YOU DIDN'T, YES I DID) ALSO WITH YOUR PURCHASE
I WILL INCLUDE ALSO 2 TUBES OF AMT-599-ASM GEL FLUX AND ONE IC POPPER
61 PCS OF STEEL NET ( THAT IS 1 ULTRA SET )
250,000 BOTTLE OF REBALLING BALLS 0.600mm ( 1 IF UNLEADED, 2 IF LEADED)
4 BOTTLES OF 50K LEADED BALLS (.35mm .45mm .50mm .76mm)
5 PAIRS OF ANTI-STATIC ANTI-SKID ESD GLOVES
2 ROLLS OF FOIL INSULATION TAPE
I WILL INCLUDED IT ALSO FOR YOU. BUT THAT IS NOT ALL
AND YES I HAVE A SPECIAL SUPPORT FOR XBOX PCB INCLUDED TOO
YES, ALSO WE HAVE THE 2 PCB SUPPORTS FOR PS3
4 STEEL TWEEZERS AND 1 BOWL ( ANTI-STATIC / ANTI-ACID / ESD )
.: 1 Steel and Brass Brush - 1 Dual Lever and Bending Shaft - 1 Drag Scraper and Knife Scraper :.
.: 1 Curved Thin Tip ( Needle ) and Hook - 1 Plain Thin Tip ( Needle ) and Driller - 1 Dual Chip Holder :.
ONLY DRAGON GROUP CHINA GIVES YOU THIS, BECAUSE WE CAN !!!
IF YOU ARE IN A COUNTRY THAT IS NOT IN THE LIST, PLEASE ASK FIRST.
IF YOU ARE IN A COUNTRY THAT IS NOT IN THE LIST, PLEASE ASK FIRST.FOR SOLDERING AND DESOLDERING
BGA, Mini BGA, QFP, SOP, PLCC or SOJ
Full Year Warranty for Machine
INCLUDES TUTORIAL VIDEO AND FULL PICTORIAL MANUAL
WHAT MEANS : SMARTER - MORE POWERFUL - BEST AREA - LESS WEIGHT -
100% FULL SUPPORT FOR ANY QUESTION AT ****@dragongroupchina.com
Rework tray With Preheating Ceramics Plate
Auxiliary Light 12V independent control
2 Tubes of Flux AMT-559-ASM 10cc
61 Pcs of Steel Nets ( 1 ultra set )
4 50k Bottles of Balls ( .35 . 45 .50 .76 ) Lead
1 250k .60 Bottle of Balls Lead Free ( 2 If leaded )
4 Tweezers Anti-Static ESD ANTI-STATIC ESD
2 Spair Heating Elements for DGC 939 Iron
5 Tips T-900M ( 3 Type K and 2 Type D )
English Manual Only to download for the moment.
1 Year Warranty directly from DGC in the world ( Remember warranty is for replacing parts, not for replace machine or the frame, that never malfunction and is too heavy )
This is a brand new, Model BIRD IR 3000 soldering/rework station from BETTER IR DEVICES Technologies Limited , an entry level desoldering/soldering rework station for surface or hole mount components. With BIRD , you get a temperature controlled rework welder station with all the enhancements including IRDA preheating surface, Infrared centered or dissipated preheating, and Soldering Iron. All controllers are fully digital. 80 mm of Preheating capacities with 65mm Infrared Area and full board support.
FOR BGA , use the IRDA Ceramic preheating plate and your Infrared light gun for the Mini BGA chips or chips secured by hooks in the middle of the chips, for turbo car chips or controlling speed chips is special to mount, dismount and make controlling boards.
This rework station is ESD-Safe and it is made of metal and coated with a static-dissipative paint and allows for Soldering and desoldering BGA, Mini BGA, QFP, SOP, PLCC or SOJ.
MORE MACHINES USING DGC SMART DIGITAL CONTROL V4.0
WITH THE WC2 POWER - WE CREATE AND WE CARE
A LITTLE GUIDANCE ABOUT BGA STATIONS AND REFLOW OVEN (IC HEATERS):
BASIC : WE HAVE THE PUHUI T-862 - IT ONLY DOES CHIPS UNTIL 18mm, THE PLATE IS 60 * 120mm and the equipment is SOLDERING IRON, IRDA HEATING PLATE AND INFRARED BEAM ONLY. IS CHEAP AND IS BASIC. THIS MACHINE IS NOT OFFERING THE WORLD OF WONDERS OF WELDING. IS A GOOD MACHINE FOR MINI LAPTOPS, MEDIUM LAPTOPS AND MINI BOARDS, SPECIALLY MOBILE PHONE ONES OR MAYBE TURBO CHIPS, BUT WONT DO BIG CHIPS.
ADVANCED: WE HAVE THE SKD 862D++ - IT DOES CHIPS UNTIL 35mm , THE PLATE IS 120 * 120mm the equipment is SOLDERING IRON, HEATING HOT AIR GUN, HEATING PLATE AND INFRARED BEAM. IS MIDDLE CLASS PRICE BUT WONT DO EXTRA BIG CHIPS OR BIG MAIN BOARDS. THE BEAM IS DIRECT AND WITH NO LENSES TO DECREASE OR INCREASE TEMPERATURE. THIS MACHINE DOES YOUR HEATING SOLDERING , LAPTOPS, MEDIUM BOARDS AND ALL THE MINI ONES . BUT AGAIN DOES NOT OFFER LENSES IN THE BOTTOM OF THE IR GUN. IS HOW THE TECHNOLOGY IS DESIGNED. THE LENSES IN ANY MACHINE DO NOT ROUTE THE BEAM , JUST DO EXPANSION OR REDUCTION OF TEMPERATURE, NOT FOCUSING.
EXPERT: WE HAVE THE PUHUI T-862++ ( DO NOT CONFUSE WITH THE LAST ONE ). IT DOES CHIPS UNTIL 35mm, THE PLATE IS 120 * 120mm the equipment is SOLDERING IRON, IRDA HEATING PLATE AND INFRARED BEAM ONLY. IS MIDDLE CLASS PRICE, BUT WILL HAVE LENSES ON THE BOTTOM OF THE BEAM. HAS 2 LENSES TO GRADUATE TEMPERATURES. THIS MACHINE DOES YOUR HEATING SOLDERING , LAPTOPS, MEDIUM BOARDS AND ALL THE MINI ONES IS IN THE SAME CLASS PRICE OF THE ADVANCED MACHINE BUT PROVIDES MORE QUALITY FINISHING THAN THE ADVANCED ONE AND THE EXTRA LENSES, BUT DO NOT HAVE HEATING BLAZING HOT AIR GUN.
THIS DO THE WHOLE WELDING FOR A WHOLE BOARD AT THE SAME TIME.
WE HAVE 2 KINDS: THE MINI , THE SPACE IS 180 * 230.5 mm, and the SUPER IS 300 * 320 mm
HERE WE SHOW YOU SOME PICTURES.
WARNING: ANY OF THESE MACHINES IS EXTREMELY SENSITIVE TO POWER STABILITY, YOU KNOW THERE ARE PROFESSIONAL POWER SOURCE DC BENCHES TO PLUG THESE MACHINES, THE IRDA HEATING COULD BURNT OR MALFUNCTION IF YOU DO NOT HAVE THE RIGHT
POWER SOURCE DC BENCH MACHINE, PLEASE DO NOT COMPLAIN IF YOU JUST PLUG YOUR MACHINE DIRECTLY TO A POWER PLUG ON YOUR WALL, YOU ARE WARNED ABOUT IT.
WE HOPE THIS LITTLE GUIDE HAVE HELPED YOU.
SOUTH AMERICAN POST SERVICE IS NOT SO GOOD, CAN TAKE A BIT MORE
( ENGLISH MANUAL AVAILABLE - MANUAL EN INGLES SOLAMENTE)
