> Hand wheel pulse encoder cnc machine tool mill router
Hand wheel pulse encoder cnc machine tool mill router

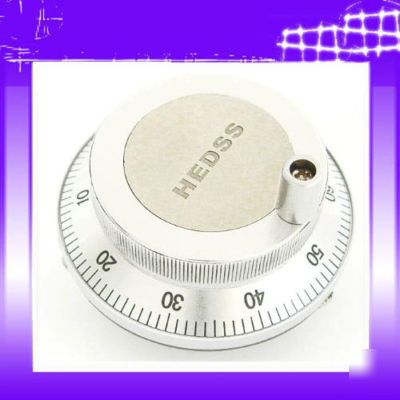

Hand Wheel Pulse Encoder For Cnc Machine Tool Mill Router manual Control
Suitable for manual pulse input type such as NC or Milling machinery
High reliability, terminal connection type
Power supply: 5V DC, 12V DC, 24V DC
Industrial tooling machinery
1. ELECTRICAL SPECIFICATIONS
A). Output wave: Square wave
B). Output signals: A, B, (Line driver output A, A, B, B phase)
C). Current consumption: 100mA
D). Response Frequency: 0~20KHz
E). Output phase difference: 90*
F). Supply voltage: 5V DC, 12V DC
G). Signal leve: LVH 85%Vcc, VL 0.3V
H). Number of pulses: 100 (Other number of pulse available on request)
I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage
2. MECHANICAL SPECIFICATIONS
A). Signal position: 4 kind
B). Speed without sealing: 500rmp
C). Starting torque without sealing: 1.0x 10-2Nm (+25*C)
D). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
E). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
F). Working life: MTBF 10000h (+25*C, 2000rpm)
G). Weight: Appraisal 275g
3. ENVIRONMENTAL SPECIFICATIONS
A). Working humidity: 30~85% (No condensation)
B). Storage temperature: -30*C~85*C
C). Working temperature: -10*C~70*C
D). Protection class: IP54
* 1 x Hand Wheel Pulse Encoder
