New technolas b&l orbscan iiz corneal topographer
NEW Technolas B&L Orbscan IIz Corneal Topographer

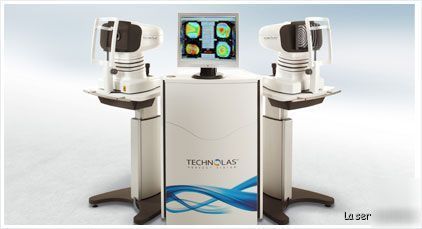

**images show the zyoptix workstation not included at this price**
**Zyoptix workstations are available upon request, please contact for pricing**
The ORBSCAN IIz is a multidimensional diagnostic system that provides a complete analysis of the eye's corneal optical system by utilizing slit scanning technology with and advance Placido disc system.
The Optical acquisition head scans the eye using light slits that are projected at a 45-degree angle. Twenty slits are projected sequentially on the eye from the left side, and twenty slits from the right side for a total of forty slits that are acquired in two 0.75 second periods providing 9000 data points. After the slits scan, an extra picture is taken using th Placido rings.
The ORBSCAN IIz is able to analyze elevation and curvature measurements on both the anterior and posterior surfaces of the cornea, full corneal pachymetry, white-to-white measurement, anterior chamber depth and angle kappa.
By calculating curvature in all directions (not just radially as in Placdio topography), the ORBSCAN IIz gives a more accurate assessment of the size, shape and extent of surface power abnormalities thus enabling the surgeon to improve the quality of refractive care.
* IEC Classification: Class 1, Type B, Mains operated Device
* FDA Classification: Class 2 Device
* Protection from liquid ingress: IPO (not used around fluids)
* Disinfecting: Wipe down between uses with isopropyl alcohol or anti-germicide.
* Flammable environment: Not for use in the presence of a Flammable Anesthetic Mixture. Labeling warns users not to use the device above Conditions.
* Mode of Operation: Intermittent Operation
* Frequency: 47-63 Hz, single phase
* Input Over - voltage Protection: 4A resettable circuit breakers
* Internal Fuse in Power Supply: Protection from power supply internal failure, 5A 250V
* Input Over - current Protection: Limited to 60A inrush by internal thermistors
* Operating Temperature: Room temperature, 10 to 43 C
* Storage Temperature: -15 to +60 C
* Humidity: 0-80% relative humidity, non- condensing
* Atmospheric Pressure: 650 - 770 mm Hg
* Size: Power supply: 13"1 x 7"x x 3"h (33cm x 18cm x 7.6cm)
* Orbscan scanner head: 21"1 x 18"w x 20"h (53cm x 45cm x 51cm)
* Weight: Power supply: 6lbs (2.7 kg)
* Orbscan scanner head: 40 lbs (18.2 kg)
* Axis Range: 0 to 360 Degrees
* Dioptric Range: 30 to 70 Diopters
* Reproducability: +/- .25 Diopters
