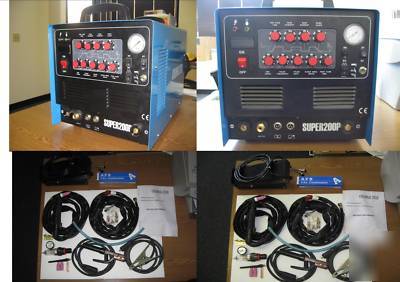

SUPER200P ac/dc tig arc aluminum pulse welder & cutter

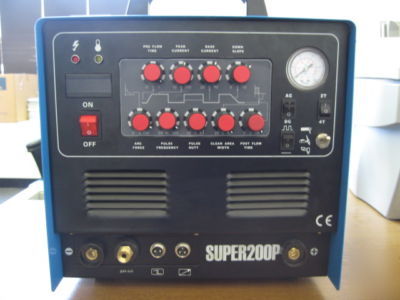

SUPER 200PAC/DC TIG/MMA PULSE WELDERPLUS PLASMA CUTTER 50Amp Plasma CutterArc & TIG Welder (AC/DC) with PulseThis Unit Will Weld All Typesof Metal Including StainlessSteel, Copper & Aluminum Digital Amperage DisplayReadout & Air PressureGauge Are Both LocatedOn The Front Of The Unit
Power Voltage (V, Hz) = single phase AC220+15%, 50/60
Range of Output Current (A) = 10-200 TIG/ 15-50 CUT
No-Load Voltage (V) = 65 TIG/ 260 CUT
Working Voltage (V) = 18 TIG/ 100 CUT
Range of Pulse Current (A) = 20-200
Range of Pulse Frequency (Hz) = 0-5-300
Max. TIG Weld thickness (mm) = 8
Max. MMA Weld thickness (mm) = 6
Unit Contains Dual Cooling Fans
