Sony mavigraph up-5600MDU medical color video printer

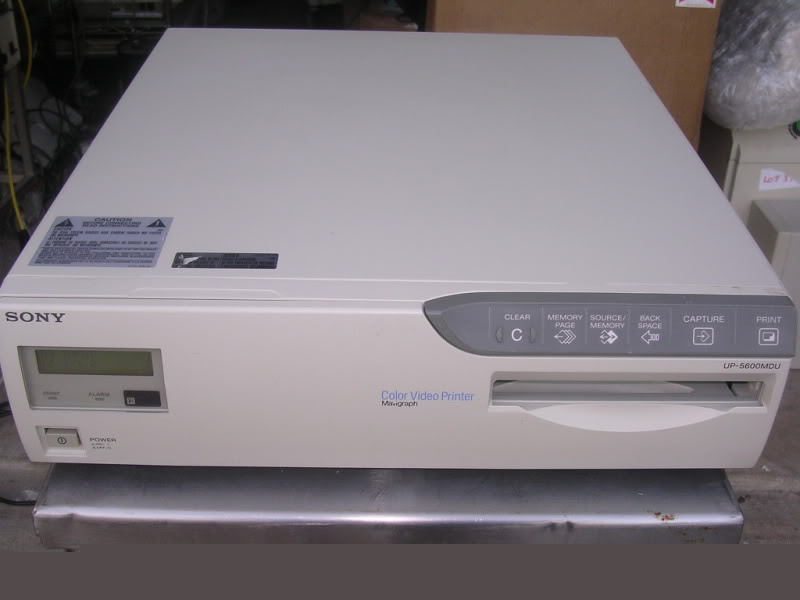

Sony Mavigraph UP-5600MDU / A Medical Color Video Printer
The UP-5600MDU color video printer (A5) is remarkable for its extremely high resolution (300 dots per inch),
and its very fast print time (30 sec. per print).In addition, the UP-5600MDU comes standard
with four frames of memory (upgradeable to a total of 8 frames).The UP-5600MDU offers an optional
SCSI interface that can produce high quality prints from digital sources.It is ideal for image creation,
patient records and referring physician copies in such applications as ultrasound
and radiological imaging, as well as any other systems that generate video signal outputs.
Ultrafine 700+line continuous tone resolution, 300dpi, print time 30 sec.,
NTSC 34 sec., PAL 38 sec., digital, 8 bits (256 gradations) and 16.7 million colors/dot,
1,2,4,8 or 16 composite print modes, automatic switch from captured image back to live,
universal compatibility 525 lines (NTSC), 100 volts, external control via RS-232C interface,
optional SCSI interface, dimensions 16.75"w x 6"h x 18.75"d, weight approx. 30lbs. 14 oz., UL-544 and IEC-601 listed.
* Ultrafine 700+ line continuous tone resolution
* 300 dpi with 16 million color variations
* Four frame memory built-in
* External control via RS-232C interface
* Multiple print modes - 1, 2, 4, 8 or 16 composite prints
* Optional SCSI interface available for digital printing (see UP-D5600MD)
* A newly developed thermal head with 2048 elements provides high resolution of 300 dpi. Sony dye transfer sublimation thermal printing technology provides near photographic quality prints with over 16 million color variations and over 700 lines of horizontal resolution.
* The optional SCSI interface board provides users with direct connection to a variety of computers and networks. Adobe Photoshop Plug in Export Modules are provided for Macintosh and Microsoft Windows compatibility.
* Sony's proprietary printing mechanics and highly sensitive print media allows rapid printing with newly developed high speed processing chips. Full color images can be printed in 30 seconds.
* For external remote control, the UP-5600MDU can be connected to a computer via RS-232C interface. A remote control unit (RM-5500) can be purchased separately, and can be used in both wired and wireless operation. An optional footswitch (FS-30) is also available. With these options, the UP-5600MD is ideal for image creation, patient records and physician copies in such applications as ultrasound, radiological imaging, endoscopy, pathology and microsurgery, or other applications that require UL/544 approval
* The UP-5600MDU utilizes new, high quality paper and transparencies. The UPC-5510 color paper and UPC-5530 transparency media produces superior color representation and dynamic range. The UP-5600MD includes a starter pack of paper for 25 prints.
* The UP-5600MD features fourt built-in frame memories capable of storing four full images. A variety of print modes are available: 1,2,4,8 or 16 composite prints. Full frame resolution can be achieved even in the 4 in 1 mode.
* Printing Method: Dye Transfer Sublimation Thermal Printing
* Picture Elements: 1920 dots x 976 lines NTSC, 2048 x 1536 maximum with optional SCSI I/F
* Gradations: 256 levels each for Yellow Magenta and Cyan (16.7 million color per dot)
* Picture Memory: 4 full frame memory, 2048 x 1024 x 8 bits x 3.
* Printing Time: Approx. 30 seconds, NTSC; 38 seconds with SCSI I/F
* Power Requirements: AC 100V-120V, 60Hz
* Power Consumption: Max, 250W
* Paper Size: A5, 5 7/8" x 8 3/8"
* Picture Size: 5" x 6.5" NTSC and 5.25" x 7" with optional SCSI interface
* Input: 525 RGB:Analog (BNC x 4, R, G, B, Sync) RGB: 07Vp-p, 75Ohms, Unbalanced Sync: 0.2-4.0Vp-p, Sync Negative, 75 Ohms UnbalancedS-Video: Y:1.0Vp-p, Sync negative, 75 Ohms, Unbalanced C: 0.286Vp-p, 75 Ohms, UnbalancedComposite Video (BNC) EIA/NTSC 1.0Vp-p, Sync Negative, 75Ohms, Unbalanced
* Output: 525 RGB Analog (BNC x 4 , R, G, B, Sync)RGB: 0.7Vp-p, 75 Ohms, Unbalanced, Sync: 1.1Vp-p, Sync Negative, 75 Ohms UnbalancedS-Video:Y: 1.0Vp-p, Sync negative, 75 Ohms, UnbalancedC: 0.3Vp-p, 75 Ohms, Unbalanced, Composite Video (BNC) EIA/NTSC 1.0Vp-p, Sync Negative, 75Ohms, Unbalanced
* Optional Interface: UPK-5502SC, SCSI 1 Channel; 50 pin, Amphenol (x2), Unbalanced, includes Adobe Photoshop Plug in for Macintosh and Windows
* Dimensions:: 16.75"(W) x 6" (H) x 18.75" (D) (424 x 125 x 475mm)
* Weight: Approx. 30lb. 14oz. (14kg)
* External Control: RS-232C (D-Sub 25-pin)
* Compliance: U/L-544 and IEC-601-1
