> Wr-42 WR42 sma waveguide isolator, 16-24 ghz, +data
Wr-42 WR42 sma waveguide isolator, 16-24 ghz, +data

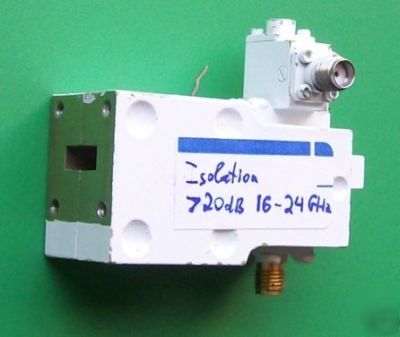

WR42 WR-42 waveguide to SMA isolator, manufactured by DMC.
Insertion loss is 1.5dB, 16-24 GHz.
Isolation is > 20dB 16 - 24 GHz, and is >30dB 18.25-23.2 GHz, see data.
Transmission is from waveguide port 1 to SMA port 2, isolation is port2 to port 1.
SMA port 3 has little effect and can be left open, shorted or terminated.
Waveguide circulator, isolator , SMA
