150 ton obs pacific high speed hydraulic press former

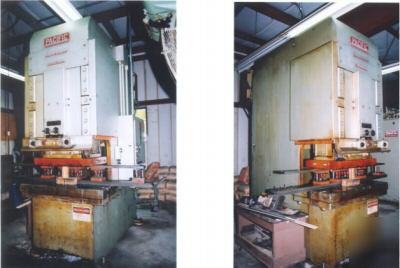

150 Ton Model 150PF-OBS PACIFIC High Speed Hydraulic Press Former, S/N 8873, new 1981
(2) Press speeds: 56 IPM (normal) & 150 IPM (fast)
(2) Return speeds: 90 IPM (normal) & 258 IPM (fast)
T-Slotted slide bolster: 34" x 24" x 4 1/4" thick
T-Slotted bed bolster: 50" x 30" x 4 1/2" thick
Bed bolster height above floor: 42 3/4"
Distance between housings: 31"
EQUIPPED WITH: T-Slotted bed and ram bolsters
Hydraulic knock-out control w/manual or automatic ejection
Lincoln Centro-Matic lubrication system
Adjustable throat safety guards
Automatic decompression system
Speed selection: combinations of rapid advance/normal press.
Rapid advance/fast press or normal press
Fast or normal return speed selector
Mode selection: off/inch/single stroke manual or automatic return
30 H.P. 3/60/230-460 volt motor and controls
Wired for 3/60/230 volt operation
DIMENSIONS: 59"LR x 126 1/2"FB x 134"High
