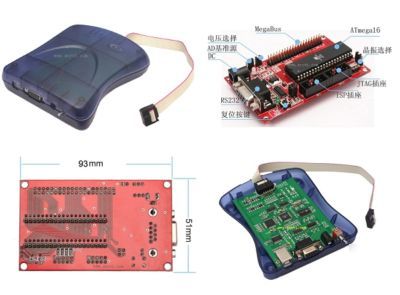

AVR JTAG ICE & AVR ISP Emulator
Works with Atmel AVR Studio 4 IDE software. Recognized as STK500/ISP and JTAG ICE devices
JTAG ICE allow user to debug the firmware which is running in the target chip
User is able to step through the C or Assembly
source code line by line in the AVR Studio. Because it is not a software simulation debugger
so that debug the in-circuit firmware become handy via JTAG interface
Both USB and RS232 can be used, when use USB, you need to setup driver
when use rs232 external power is needed DC 7~9 v , in the center is VCC
4 kinds of Protection circuits can ward the Programmer & Emulator and your board out of be damage
The JTAG ICE or AVR ISP can be Automatic Identification
so you need not use squid cable for switch, just place the cable to your 10 PIN JTAG or ISP interface smoothly
2 in 1 feature gives use a flexibility and convenience when doing development.
1X USB driver/Software CD with user guide
This development board contains all the basic circuit minimum system
3, AD conversion filter circuit
6, regulated power supply circuit, input DC (7 ~ 12V)
7, RS232 serial communications (USART)
8-pin DIP to facilitate the expansion of
Recommended tools: JTAG ISP Series
