> Eimac 3CX400U7 / 8961 transmitting tube -------loc h-12

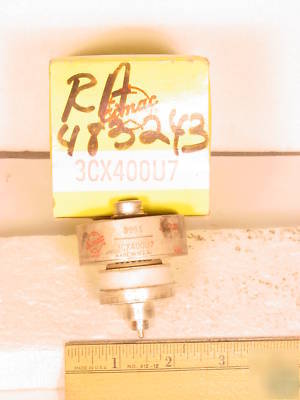

Eimac 3CX400U7 / 8961 transmitting tube -------loc h-12
Specifications are from Richardson Electronics and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Used in Ham Radio, Induction Heaters, Plasma Generators, RF Generators and much more.
The Eimac 3CX400U7/9023 is a high-mu power triode designed for use above 200 MHz as a CW, pulse, or linear RF amplifier, particulary in the 806 to 1000 MHz portion of the spectrum allocated to land mobile service. The tube is designed with beam forming cathode and control grid geometry, and has an anode rating of 400 watts. With an amplification factor of over 200 and a minimum current interception by the grid the tube has excellent power gain in cathode driven circuitry. Over 200 watts of useful CW RF power may be obtained with better than 33% efficiency and better than 10 dB of gain in the UHF region.
For More Information: http://catalog.rell.com/rellecom/Images/Objects/900/857.htm
Amplification Factor ( ): 200.0
Frequency (MHz) Maximum: 1,000
Peak Cathode Current (A): 3.000
Typical Anode Current (A): 0.400
Typical Anode Voltage (V): 1,500
Plate Dissipation (Max.): 400 watts
Grid Dissipation (Max.): 5 watts
Filament/Cathode: Oxide Coated
WE HAVE NO WAY OF TESTING ITEM
