Industrial inspection compound microscope upper light

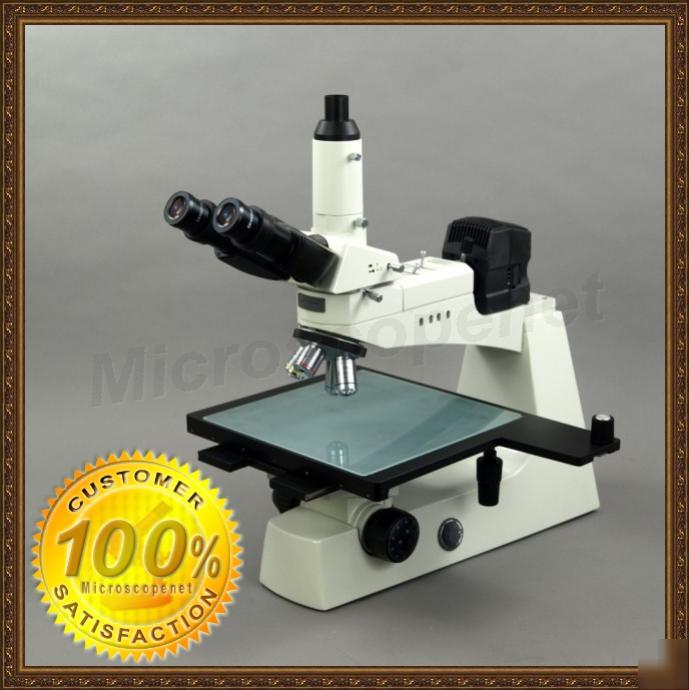

Large Stage Industial Inspection Microscope
This microscope is designed for large area inspection. It has a reflected lighting system which is different from regular low power stereo microscopes. It also has large working distance objectives (2.9mm for 40x objective) which is absence in regular high power compound microscopes. The PLAN achromatic objectives assure high image quality from center to edge. The stage has large moving range (10"x10") with coarse and fine coaxial knobs and a unique hand-push fast movement mechanism. It also has the capability to employ polarization attachement (not included in this item).
* Sturdy base ensures still image at high powers
* Large stage and large movement range
* Comfortable lower-front coarse and fine focus knobs
* Hand-push fast movement mechanism
* Standard C-mount and 23.2mm eyetube included for digital photography
* Infinitive long working distance PLAN objectives
* Polarization attachment capable (not included)
* Extra widefield eyepieces (EW10X/22)
* Wide range interpupillary distance (48mm-75mm)
* Color and diffusion filters included
* Head: 30 Inclined 360 rotatable Seidentopf trinocular
* Eyepieces: extra wide field EW10X/22
* Interpupillary distance: 48mm-75mm
* Objective: plan field infinitive-corrected 4x, 10x, 20x, 40x(S), 80x(S)
* Objective working distances: 4x-17.8mm, 10x-10.0mm, 20x-5.10mm, 40x-2.9mm, 80x-0.2mm
* Objective field of view: 4x-6mm, 10x-2mm, 20x-1.06mm, 40x-0.53mm, 80x-0.35mm
* Total magnification: 40x-100x-200x-400x-800x
* Reflected illuminator: 6V/20W halogen
* Large stage 11-3/4" x 10-1/2"(300mm x 268mm)
* Large stage moving range: 10" x 10" (254mm x 254mm)
* Stage vertical stroke (focusing travel distance): 1" (25mm)
* Power supply: 110V/60Hz (US and Canada plug)
* Dimension: 22" x 15-1/2" x 22" (56cm x 40cm x 56cm)
* Net weight: 35lb 6oz (16kg)
* Trinocular inspection microscope body
* 5 plan field infinitive-corrected objectives: 4x, 10x, 20x, 40x(spring), 80x(spring)
* Eyepiece: a pair of EW10X/22
* 23.2mm vertical phototube adapter
* Power cord (US and Canada standard)
* 3 color filters, yellow, green, blue
* Extra halogen bulb (6V/20W)
* Digital USB2.0 cameras for computers
* Consumer digital camera adapters (including DSLR)
Click the button above to view the list of parts and accessories for this product M836L
