> Takisawa mac-3V, cnc, vertical machining center, vmc
Takisawa mac-3V, cnc, vertical machining center, vmc

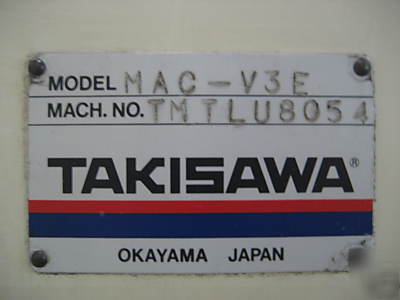

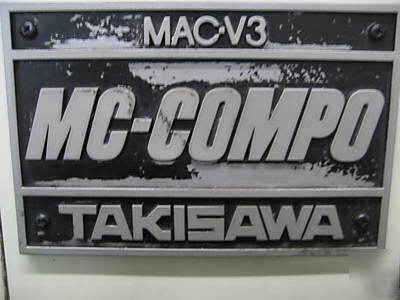

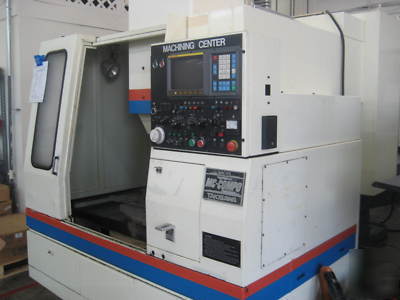

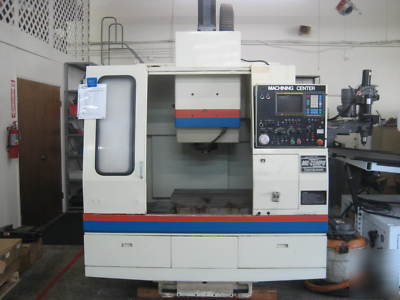

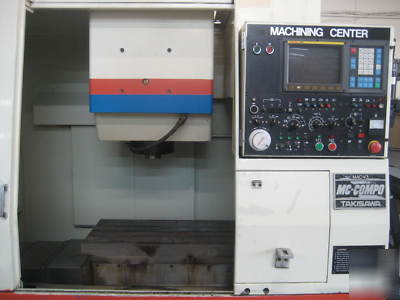

TAKISAWA MAC-V3E VERTICAL MACHINING CENTER
SERIAL NO. TMTLU8054 NEW 1991 PROX.

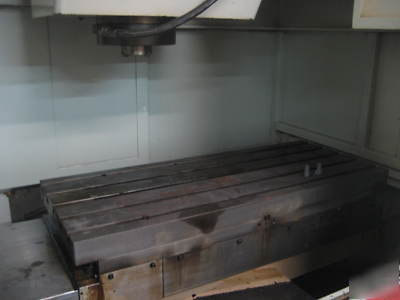

TABLE SIZE 35-7/16 in. X 16-1/8 in.
LONGITUDINAL TABLE TRAVEL 29-7/19 in.
VERTICAL HEAD TRAVEL 16-1/8 in.
SPINDLE NOSE TO TABLE TOP 5-1/2 in. - 21-2/3 in.
SPINDLE CENTER LINE TO COLUMN 17-11/16 in.
SPINDLE SPEED (2 GEAR RANGES) 100 - 7,000 RPM
X-AXIS RAPID TRAVERSE RATE 500 IPM
Y-AXIS RAPID TRAVERSE RATE 500 IPM
Z-AXIS RAPID TRAVERSE RATE 400 IPM
TOOL SELECTION RANDOM, BI-DIRECTIONAL
MAXIMUM TOOL DIAMETER 3-1/8 in.
DIMENSIONS 74-3/4 in. X 100 in. X 106 in. H
2 RANGE GEARED HEAD / 7,000 RPM
F.O.B.: FREMONT, CA ( Loading Included - Showroom Stock)
CONDITION: EXCELLENT - SUPER QUIET SPINDLE
OPTION: "MODULAR PALLET SYSTEMS" 180 INDEX PALLET CHANGER
WITH 4 PALLETS, (2) CLAMP UNITS, ETC. $3,000.00
NOTE: Machine is stock in our Fremont, CA showroom and can be seen under power at any time. We have checked out the machine and everything is in good working order and it's ready to go. The Spindle sounds fantastic. Call or email with any questions.
