Tektronix 453 oscilloscope,probe & wavetek 1146/u gen.

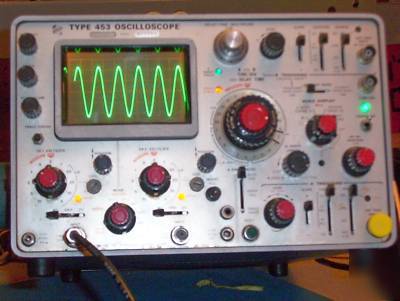

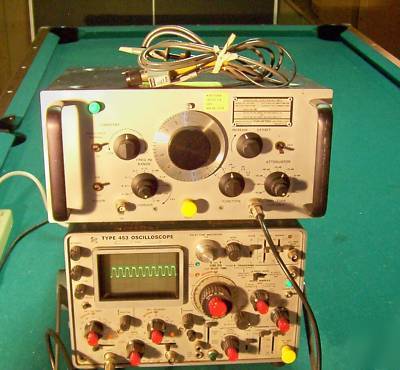

I NO LONGER RESTORE OLD VACUUM TUBE RADIOS. THIS IS THE LAST OF THE TEST EQUIPMENT. NONE OF IT HAS BEEN CALIBRATED RECENTLY. AS YOU SEE IN THE PHOTO, BOTH THE WAVETEK AND THE TEKTRONIX IS WORKING. THIS TEST BENCH IS IDEAL FOR THE AUDIO AND RADIO SPECTRUM. THE SCOPE OPERATES AT FREQUENCIES UP TO 10 MHZ. THE FIRST PICTURE SHOWS A SQUARE WAVE OPERATING ABOVE AND BELOW ZERO AT OR NEAR 10 MHZ.

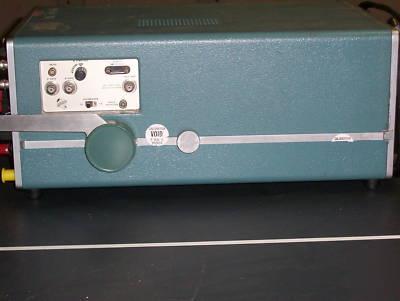

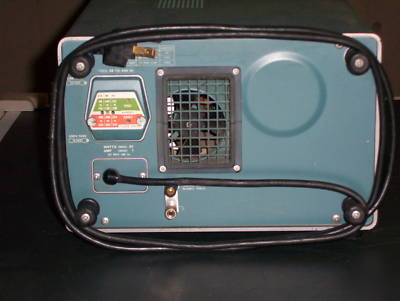

TEKTRONIX IS MISSING THE FRONT COVER AND THE HANDBOOK. BOTH ARE AVAILABLE ON THE INTERNET. ( reprise.com) THE PROBE IS THE TEKTRONIX P6106. THE DATA SHEET FOR THE PROBE IS AVAILABLE. (teknetelectronics.com)
THE 453 SPECIFICATIONS: 2 CHANNEL DUAL TRACE DELAYED SWEEP, 50MHZ BANDWIDTH, 5MILLVOLTS/DIVISION TO 10 VOLTS/DIVISION.

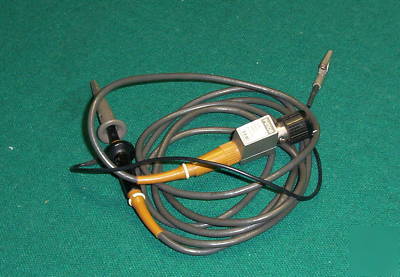

THE P6106 SPECIFICATION: 1X/10X TIP,13pf,10MEG-OHM, 2 METER LENGTH.

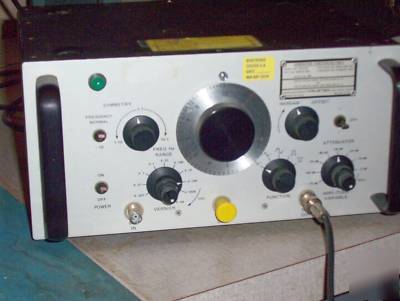

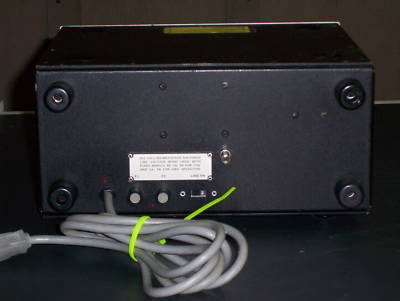

WAVETEK 1146/U IS A RUGGEDIZED VERSION OF THE WAVETEK 142, WITH UPRATED POWER SUPPLY AND AN ALL METAL CASE, WITH FRONT CARRYING HANDLES. THIS IS A HIGH PERFORMANCE 10 DECADE (.001HZ TO 10 MHZ RANGES) FUNCTION GENERATOR. THE FUNCTIONS ARE SINE,SQUARE,PULSE AND TRIANGLE WAVEFORMS. THE 140 HANDBOOK CAN BE DOWN LOADED FROM WAVETEK ON THE INTERNET.
