#MA400HA okuma 3-axis cnc horiz machining center #25880

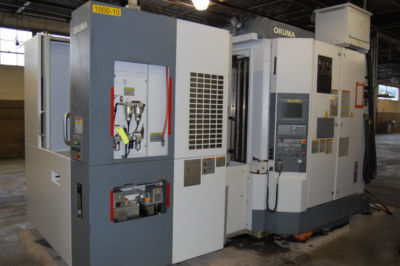

#MA400HA OKUMA "SPACE-CENTER" 3-AXIS CNC HORIZONTAL
MACHINING CENTER w/2-PALLET-SHUTTLE
New March 2004, Serial No 108376, Model MA400HA,
Okuma OSP-E100M CNC Control w/4th-Axis Capabilities
(2) 15.75" x 15.75" 1-Degree Pallet w/Pallet-Shuttle
40-Position Automatic Tool Changer
Chip Blaster Model J8-1000 Hi-Pressure CTS System
Pallet Shuttle Dimensions, W x L....... 15.75" x 15.75"
Pallet Load Capacity................... 880 LBS
X-Axis Column Longitudinal Travel...... 22.05"
Y-Axis Head Vertical Travel............ 24.02"
Z-Axis Table Cross Travel.............. 24.61"
Spindle-Center to Table-Top, Minimum... 1.97"
Spindle-Center to Table-Top, Maximum... 25.98"
Spindle Taper.......................... #40 NT
Tool Diameter w/Adjacent Tool, Maximum. 3.94"
Tool Diameter w/o Adjacent Tool, Maximum.. 5.91"
Tool Length, Maximum................... 11.81"
Tool Weight, Maximum................... 22 LBS
Spindle Speeds Range, Infinitely Var... 50 to 8000 RPM
Jog Feedrate Range..................... 0.04 to 2362 IPM
Rapid Traverse Rate.................... 1970 IPM
Spindle Motor, 15-Minute Rating........ 20 HP
Floor Space Required, L x W............ 14'9" x 7'11"
Weight, Approximately.................. 25080 LBS
NOTE: Replacement Price Is Approximately.. $350,000.00
PRICE: F.O.B. OHIO (CINCINNATI)........ $99,500.00
