New 3 foot 22 awg mil spec M27500 MH22 shielded cable

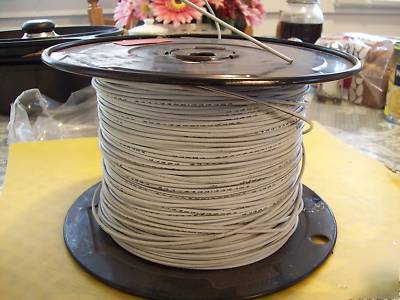

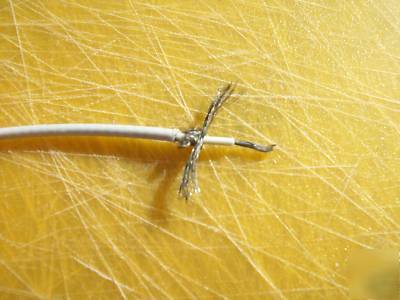

22 GAGE SHIELDED CABLE. (22 AWG)
THIS CABLE WAS MANUFACTURED BY VERTEX WIRE V AND CABLE COMPANY. THE PART NUMBER IS 1T08.

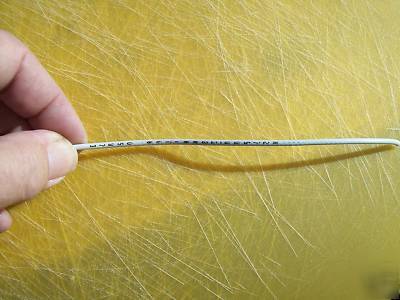

MIL SPEC NUMBER IS M27500-22MH , OR M27500-22 MH, COLOR 9. THE CABLE IS WHITE WITH THE MIL SPEC NUMBER STAMPED ON IT {M27500-22MH IT08}.
PTFE Shielded and Jacketed Cables
PREFERRED IDENTIFICATION FOR M27500 CABLES UNLESS OTHERWISE SPECIFIED
White x White/Blue x White/Orange
White x White/Blue x White/Orange x White/Green
White x White/Blue x White/Orange x White/Green x White/Red
White x White/Blue x White/Orange x White/Green x White/Red x White/Black
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet x White Gray
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet x White/Gray x White/Brown
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet x White/Gray x White/Brown x White/Blue/Blue
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet x White/Gray x White/Brown x White/Blue/Blue x White/Orange/Orange
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet x White/Gray x White/Brown x White/Blue/Blue x White/Orange/Orange x White/Green/Green
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet x White/Gray x White/Brown x White/Blue/Blue x White/Orange/Orange x White/Green/Green x White/Red/Red
White x White/Blue x White/Orange x White/Green x White/Red x White/Black x White/Yellow x White/Violet x White/Gray x White/Brown x White/Blue/Blue x White/Orange/Orange x White/Green/Green x White/Red/Red x White/Black/Black
White Nylon Braid Over Polyester Tape
NATIONAL STOCK NUMBER (NSN) 6145-01-152-5077
NATIONAL ITEM IDENTIFICATION NUMBER (NIIN)
6145 - Wire and Cable, Electrical
Automatic Data Processing Equipment Code (ADP)
HAZARDOUS MATERIALS INDICATOR CODE (HMIC)
(N) There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
PRECIOUS METALS INDICATOR CODE (PMIC)
Environmental Attribute Code (ENAC)
ELECTROSTATIC DISCHARGE CODE (ESDC)
(A) No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
MATERIAL DOCUMENT AND CLASSIFICATI
