Power max diesel heavy duty generator pmd 20 kw silence

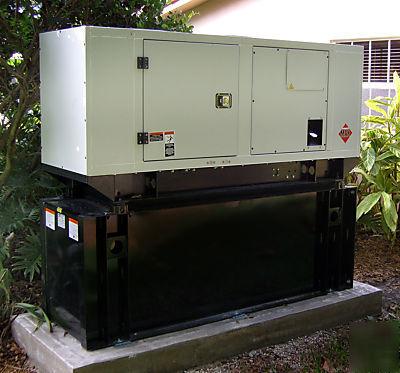

POWER MAX HOME STANDBY HEAVY DUTY GENERATOR SET PMD-20
Lombardini ENGINE IN A POWER MAX DESIGN
Power Max products are elegant and represent useful, reliable, durable and very competitive tools.
ID NUMBER (HOUSE) P007333, SERIAL 06-1700
Power Max Residential Generators are hand crafted in Italy exclusively for Power Max. We are offering a 20 eKW diesel, 30 eKW diesel and a 19 eKW natural gas/propane gas powered unit. Our nataturally aspirated engines generate less than 64 dbA at 7 meter. It is so quiet, no other residential generator in its class even comes close.
Power Max Generators are built to last the life of your home and is protected by a compact, power-coated aluminum enclosure for maximum corrosion resistance. We can customize a fuel storage container to your capacity requirement and comply to your city ordinances. Our worry free guarantee is backed by local product service and support network.
Power Max is the clear choice for ultra quiet residential stand-by power.
GENERAL TECHNICAL SPECIFICATIONS
Continuous Operating Power (C.O.P.)
Engine Max power @ 1800 R.p.m.
2120 x 720 x 1050 (Super Quiet)
Sound level @ 7mt (75% cop rating)
Number and con?guration of cylinders
maintenance free hydraulic valve lifters
The following devices are placed on the control panel of the card:
Reset/Manual/Auto/Test buttons (to select operating procedures)
Measure button (to select display)
Start/Stop buttons (start/stop of the generator)
Reset/Man/Auto/Test LED (selected operating procedure signals)
LED volt, hertz, V. Battery, hour meter (selected measure signals)
LED battery (battery charger condition)
LED starting failure (Genset starting failure)
LED TLR (utility mains), TLG (Generator AC power leads) indicates power source being delivered to the load.
LED failure (fault/alarm signal)
3 figure display (measures, alarms, etc display)
Control based on 11 MHz Intel 80c552 microprocessors.
32Kbyte static RAM data memory
512 Word EPROM involatile data memory
Operator display of 3 figures LED display
Function/State/Alarm display by means of 15 LED s.
Diaphragm button strip with 7 mechanical effect buttons.
Voltages measure at real effective value (RMS.).
All programming options accessible from the frontal side
without dip switch (by software in permanent memory)
Programming options protected by admittance key
Intelligent modulation of voltage and current control of battery charger.
RS 232 serial interface for remote control by computer or modem
11. Utility Remote Control Switch
12. Genset Remote ATS Control Switc
