Access control keypad set weather protected
Access Control Keypad Set Weather protected

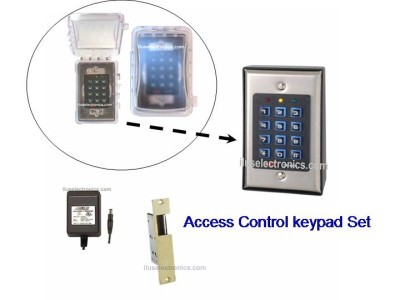

Access Control Turn Key Set: Back Lit Weather Protected digital Keypad, Electric Strike and Transformer
* The turn key system offered includes:
* One Weather protected Access Control Keypad Model 9520BL for residential and commercial applications
* One Electric Strike Model 220 for doors or Gates
* Key in the assigned password and activate the electric lock
* Compatible with virtually all electric locking devices
* Single User for the general Users,
* Multi-User Mode for the advanced Users
* The 9520-BL has Auto Code and Manual Code for both user modes.
* Item is located in Tallahassee, FL.
* If you have a need for larger quantities please contact us.
Access Control Keypad Features
* Direct 12-24V AC/DC Operation (In this case AC)
* 100 User Codes with 4-8 Digits
* Operates Fail-safe (N.C.) or Fail-secure (N.O.) Locking Device
* One 5 Amp Relay Output with N.C. & N.O. Contacts
* For replacement of Schlage-Type A, B, C, D, F and compatible locks
* Wide operating range 6-18V AC Strike voltage
* Will operate with all ILUS Access Control products
* Mounting hardware and directions included
* Dimensions: 5 7/8" x 1 1/4" x 1 11/16"
* Durable High-Impact Polycarbonate Construction Resists breakage and Corrosion
* Cover could be inserted for horizontal of vertical opening
* Mounting hardware is not required
* Insert and lock using ILUS Electronics 9520 and 9522 Access Control Keypads screws
* Quick fit Hole Mount allows for Easy Installation
* Includes attached Weather Gasket
* Output Plug: 2.5 mm x 5.5 mm, female
* Dimensions: 3 1/4"H x 2 3/8 "W x 2.00"D.
