New varian turbo-v 300HT macrotorr turbomolecular pump
Refurbished Varian Turbo-V 300HT MacroTorr Turbomolecular Pump
Specifications are from Varian and may vary slightly due to upgrades, options, or revisions this unit may or may not have.

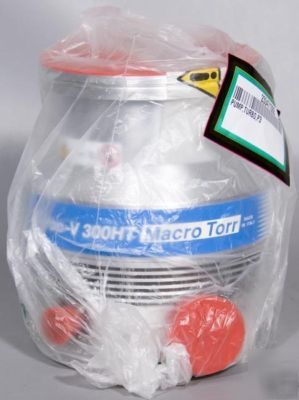

This unit is an off the shelf item from Intel that was surplus. It was refurbished. The bag has some tears in it. The blades spin freely.
List Price (from Varian, 2000): $6,710.00 NEW
The Turbo Pump's Serial Number Tag Reads:
Pump Part Number Breakdown: Turbo-V300HT Pump with ISO 100 high vacuum inlet flange
Link to the Manual: Varian Turbo-V 300HT MacroTorr Turbo Pump Manual
The Turbo-V pumps are designed to meet the most demanding needs of the market. They offer unmatched reliability, performance, and cleanliness.
The innovative MacroTorr pumps feature an award-winning, patented design that provides the highest speed/compression ratio performance in the smallest package. Since MacroTorr pumps can operate at high foreline pressures, they allow the use of diaphragm roughing pumps, providing a completely clean, oil-free pumping package.
Ceramic bearing pumps deliver long operating life. In fact, ceramic bearings provide reduced rolling friction, low stress, high thermal stability, and high elasticity module as compared to conventional stainless steel bearings. Proprietary ultra-low vapor pressure solid lubricant eliminates the need for routine maintenance and assures clean operation in case of misuse.
* Operation with dry diaphragm pumps
* Installation in any orientation
* Dry mobile pumping systems
* Multi-Chamber Mass Spectrometers
Other Industrial Applications:
* Lamp and Picture Tube Processing
With Recommended Mechanical Forepump: 2 x 10-10 (1.5 x 10-10 Torr)
With Recommended Diaphragm Pump: 2 x 10-8 (1.5 x 10-8 Torr)
Rotational Speed: 56,000 RPM
Minimum Recommended Forepump:
Two-Stage Rotary Pump: SD 300
Cooling Requirements: Forced Air, Water Optional
Bakeout Temperature: 120 C at inlet flange (for CFF version)
Vibration Level (displacement): < 0.01 m at inlet flange
* Picture 7 - Connection to the Power Supply
