> Strippit di-acro finger box hand brake press backgage
Strippit di-acro finger box hand brake press backgage

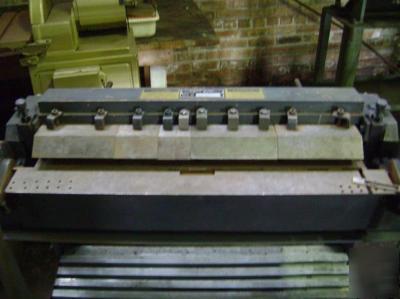

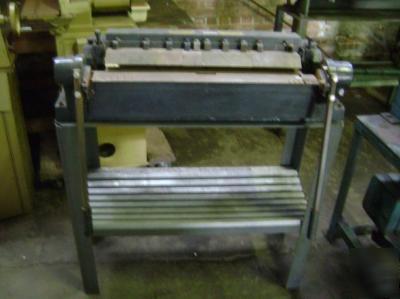

Strippit Di-acro No24 16ga x 24" box pan leaf brake.
3-6",1-3", 1-1/4", and 1-1" fingers
INFO FOR REFERENCE ONLY at Di-acro.comhttp:// /diacro_products/diacro_finger_brakes.html
Di-Acro Hand Operated Finger Brakes
diacro model 24 finger brakesModel 24 Finger Brake
Di-Acro Finger Brakes lend speed and precision to the formng of boxes, chassis and related shapes in sheet metal.
Di-Acro Finger Brakes are adjustable to enable precision bending by compensating for material thickness and hardness. Box finger segments enable the operator to form boxed from .75" up to the full width capacity of the maching in increments as small as .25".
Finger Brakes are availble in forming widths of 24" and 36".
* Box fingers (brake die steel)
* Model 24 incl. 2 at .75"
* Model 36 incl. 2 at .75"
* Two Adjustable stops - control angle bend
* Stand Heavy duty construction featuring 3/16 steel including the work shelf. 33 tall x 27 wide x 15 deep.
* Stand Heavy duty construction featuring 3/16 steel including the work shelf. 33 tall x 47 wide x 15 deep.
Max. Angle Bend (one operation)
Space Requirements WxDxH Incl. optional stand
A multitude of forming and duplicating operations can be preformed with a leaf type diacro brake in both production and experimantal fields.

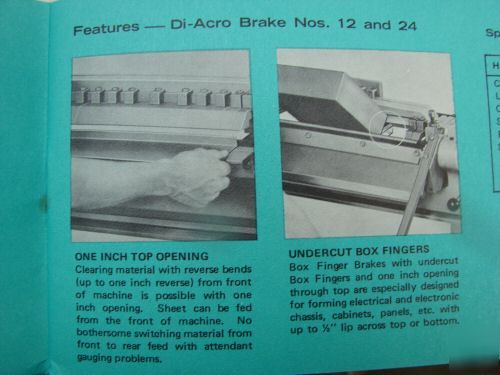

Model 12 and 24 diacro box finger brakes are of identical construction and feature undercut fingers and one inch clearance throught top opening. Because of these features they are particularly useful where boxes,chassis and panels with up to 1/2 inch lip or flange across top or bottom are to be formed. box finger segments used individually or in combination allow forming boxes from 3/4 inch to maxium width in any 1/4 increment.
Questions email or call BOB (***)-392-5055
Most items have a warranty check ad for policy in none is lited then the following applies.
All items are sold "AS - IS, Where - IS" and with no refunds or returns. Items are described to the best of our knowledge, however, We at Best Bay Machinery Sales and/or the Seller make no guarantees regarding accuracy, errors or omissions in item descriptions and make no warranty, express or implied as to the nature, quality, value or condition of any item.
