Dwyer magnehellic 2005 differental pressure gage 0-5"H2

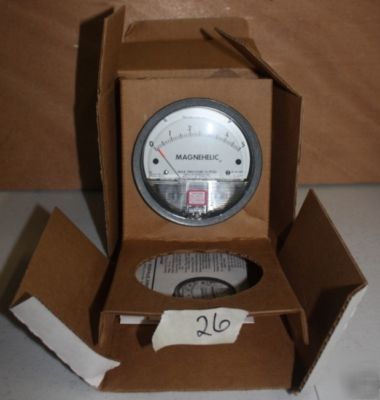

New in Original Box Dwyer Differential Pressure Gauge Model 2005
Service: Air and non-combustible, compatible gases.
Housing: Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
Accuracy: 2% of full scale ( 3% on -0, -100PA, -125PA, -10MM and 4% on -00, -60PA, -6MM ranges), throughout range at 70 F (21.1 C).
Pressure Limits: -20" Hg. to 15 psig.
Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.
Temperature Limits: 20 to 140 F. Mounting Orientation: Diaphragm in vertical position.
Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
