3 spdl clausing 1655 multi-spdl drill, 15", belt drive,
3 Spdl Clausing 1655 MULTI-Spdl DRILL, 15", Belt Drive,
3 Spindles Clausing 1655 MULTI-SPINDLE DRILL, 15", Belt Drive, 3/4 HP Spindles

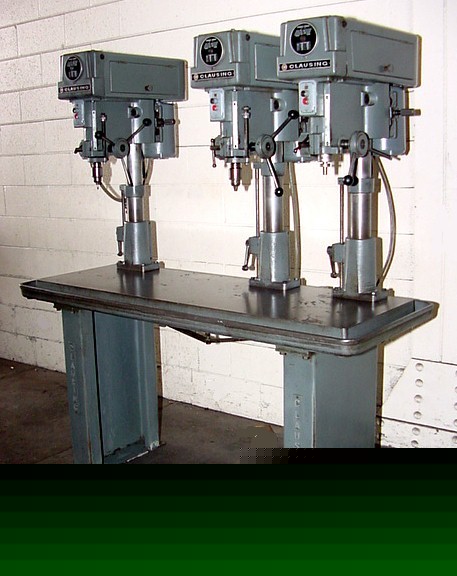

15" CLAUSING THREE SPINDLE DRILL PRESS,
MODEL #1655, S/N 112725,112724 & 112727
OVERALL SIZE OF TABLE .................. 25" X 65"
TABLE WORKING SURFACE .................. 20" X 60"
THROAT DEPTH ........................... 15"
DRILLING CAPACITY, CAST IRON ........... 5/8"
SPINDLE TAPER .......................... #33 JARNO
FOR 1/2" CAPACITY DRILL CHUCKS
SPINDLE TRAVEL ......................... 4-3/4"
SPINDLE SPEEDS (5) w/ STEP PULLEY DRIVE
260, 530, 1,060, 1,860, & 3,600 RPM
MAX DISTANCE, SPINDLE TO TABLE ......... 23"
APPROXIMATE WEIGHT ..................... 1,450 LBS.
- 25" X 65" PRODUCTION TABLE w/ TROUGH
- HEAD LIFT AND FLANGE MECHANISMS FOR RAISING & LOWERING
DRILLING HEADS ON ROUND COLUMNS
- (3) 0-1/2" CAPACITY DRILL CHUCKS
- (3) 3/4 HORSE POWER 3/60/230-460V 1,140 R.P.M. DRIVE MOTORS
