Itron G5R handheld meter data collection unit&base vgc
Itron G5R handheld meter data collection unit & base. Used. In very good working and cosmetic condition.
Re. Its Software: the handheld s internal software is updated automatically when they had their annual maintenance or when the MV-RS software (PC software
associated with the handhelds and reading system) was upgraded which in-turn automatically upgrades the handhelds when they linked up electronically.
The newest version is MV-RS 7.12.3. The G5R listed herein has MV-RS software loaded on it.
The unit sells USED for $1295 on other websites. Our price $595. Save $700!
The Itron G5R is a rugged, flexible, and powerful handheld computer. It is compact, lightweight, water and dust resistant, and operates in a wide range of temperatures. The G5R integrates the functionality of a modern DOS computer into an ergonomic package that provides all the basic meter data collection functionality required within a single unit. The G5R uses a radio transceiver for walk-by meter reading data collection. The G5R handheld can be used for walk-by data collection from endpoint-equipped electricity, gas or water meters.
The G5R is compatible with the following Itron data collection software systems: MV-RS, Premiereplus4 and Integrator. Data collection software is used to download route information to the handheld, upload the collected meter data and transfer it to a billing system or meter data management system, such as Itron Enterprise Edition Meter Data Management.
If you have a Badger model 25 RTR meters. The ERT(register transmitter) must be also Itron. These handheld units work only with the Itron ERTs. Thus, your Badger meters need to have the Itron ERTs on them. If it is some other make of transmitter, then these handhelds will not work.
The unit is approx.9 years old and in good physical shape. Good working condition.
The ChoiceConnect G5 is Itron s field-proven, light-weight handheld computer for visual and radio-based (G5R) meter reading. With over 25,000 in service, the G5 is the choice for reliable handheld meter data collection
APPLICATIONS: The Itron G5R handheld computer combines the latest technology with a full duplex radio in a small and power efficient package. It is capable of reading all Hersey meters equipped with AMR touchpads when used with the Versaprobe universal probe. The G5R's integral radio receives all 50W ERT radio read module signals. Manual entry of data for visually read meters and notes is supported as well. When used with the Itron meter reading management software, or Hersey EZ Reader software, a variety of reports can be generated to assist in management of all aspects of water and resources use. Accurate data collection, a faster read to bill cycle, and increased meter reading productivity are available with this simply, yet comprehensive meter reading tool.
Features & Benefits
The G5 is a rugged, flexible, and powerful handheld computer. It is compact, lightweight, water and dust resistant, and operates in a wide range of temperatures. The G5 integrates the functionality of a modern DOS computer into an ergonomic package that provides all the basic meter data collection functionality required within a single unit. Use the base G5 for manual key-in data entry as well as time-of-use (TOU) probing and water or touch pad probing.
The G5R combines the functionality of the base G5 with a radio transceiver for walk-by meter reading data collection. The G5R handheld can be used for walk-by data collection from endpoint-equipped electricity, gas or water meters.
The G5 and G5R are compatible with the following Itron data collection software systems: MV-RS, Premiereplus4 and Integrator. Data collection software is used to download route information to the handheld, upload the collected meter data and transfer it to a billing system or meter data management system, such as Itron Enterprise Edition Meter Data Management.
When you deploy the G5 for manual meter reading, you can:
* Download meter readings directly into your data collection software.
When you deploy the G5R for radio-based meter reading, you can:
* Reduce operational costs associated with reading hard-to-access meters.
* Eliminate manual data entry errors.
* Increase the number of meters that can be read in a single day.

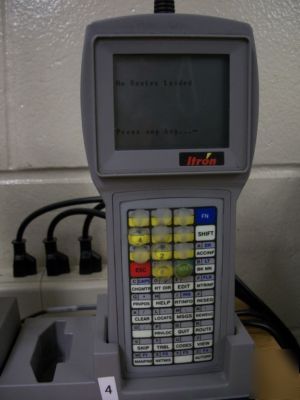

* PICTURE OF ACTUAL ITEM FOR SALE
CONFORMANCE TO STANDARDS: The G5R computer is tested to MIL-STD-810E for drop, humidity, rain, shock, dust, vibration and altitude.
DESCRIPTION: The G5R computer is lightweight, rugged and ergonomincally designed for comfortable use in all envioronmental conditions. The LCD display is manufactured with temperature compensated contrast control and backlighting for viewing ease. The 30 character x 18 line screen provides plenty of room for the display of meter information and notes. Forty applicaitons definable keys in a flat membrane keyboard template that is field replaceablemake data entry easy when required. Since 99% of a meter reader's keystrokes are numeric entry, a ten digit numeric keypad is located in an easy to use location. A new power management system chooses from differnt processor modesto enhance performance and battery life, allowing more reads without charging the battery pack. The new performance and battery life, enabling more reads without charging the battery pack. Once the data is collected, 16 BM Compact Flash card technology permits the storage of critical information without a power source.
G5 POD: Itron's G5 POD is a compact, affordable communications cradle and battery charger. As an advanced cradle unit, the POD is lightweight and versatile with enhanced charging capabilities. With the POD, a battery pack can be charged individually while installed in the G5 unit, or a combination of an individual battery pack and a G5 unit can be charged simultaneously. Other features include: Connetion of multiple G5 PODs via interconnect power board three per power supply. Simultaneous communications and charging of battery in G5 handheld. 5-6 hour battery charging time. High-contrast LED indicator lights for operational modes
Designed and tested to MIL-STD 810
8MB RAM, 1024K EPROM with MS/DOS Operating System, MS/DOS Utilities, Disk Drive Space on 16MB Compact Flash Card
NEC V25+; 386MHz internal clock;
Operating System / Application Language
IBM's PC DOS 200, General Software Bios 4.0
Intelligent lithium-ion, Lithium coin clock battery backup, 8-12 hour battery life, 5-6 hour battery charge time
Serial port Connections: Side Port Hirose Connector with 5V, through cradle
