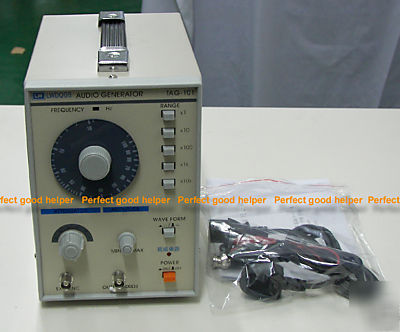

New audio signal generator (10KHZ-1MHZ) - RAG101
Reliable circuitry Insure high stability and accuracy.
Easy operation on vertical type panel assembling.
Frequency range from 10Hz to 1MHz selectable in 5 ranges are calibrated with single-scale graduations.
More than 5V rms at no load and more than 2.8V rms on 600 loading (Sine Wave). Output level can be adjusted by a 10dB-step, 6 range attenuator and a level adjuster.
Sine wave and square waves available.
Output Voltage : 5V rms or more
Output Distortion: 400Hz-20KHz, 0.1% or less (X100 range for 1KHz)
Output Flatness: 1.5dB (refer to 1KHz)
Output Voltage:10V p.p or more
Duty Ratio: 50% 5%(refer to 1KHz)
External Synchronization Characteristics
Range 3% of oscillator frequency
Input Impedance: 10K approximate
Attenuator: 0dB, -10dB, -20dB, -30dB, -40dB and -50dB in 6 steps (accuracy +1dB at 600 load)
