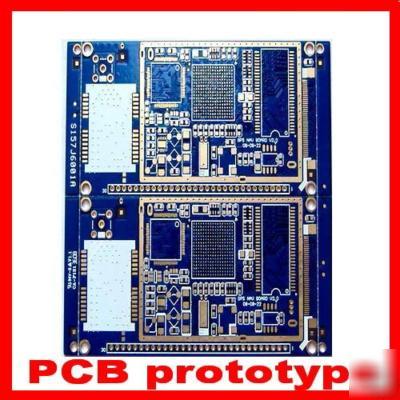

Pcb prototype manufacture produce make fab assembly FR4
Professional 1-10 layers PCBs manufacture service
We are specializes in producing highly precise PCBs from 1 to 10 layers.
We've gotten Certifications: ISO9001:2000, ISO14001:2004, ISO/TSI6949:2002, UL and CQC.
We don't set fixed price,we offer you very competitive price according to your different Gerber.
FR4,CEM-3,CEM-1,94HB,94KB,TG170
HAL,HAL Lead Free,Gold immersion,Gold finger,OSP/ENTEK,Peelable Mask,Bare Cu
Green, yellow, Red, Black, Blue,Thermosetting Oil, Photosensitive Oil
Min.Trace Width & Line Spacing
Min.Hole Diameter for CNC Dring
Min.Hole Diameter for Punching
PTH 0.075mm(3mil) NPTH 0.05mm(2mil)
0.15mm(6mil) by CNC Routing 0.1mm(4mil) by Punching
Min.Spacing between hole edge to circuitry pattern
NPTH hole:0.13mm(5mil) PTH hole: 0.18mm(7mil)
Registration Tolerance of front/back image
4 layers: 0.15mm(6mil)max 6 layers: 0.25mm(10mil)max
4 layers: 0.13mm(5mil) 6 layers: 0.15mm(6mil)
PTH L: 0.15mm(6mil) W: 0.1mm(4mil)
NPTH L: 0.125mm(6mil) W: 0.1mm(4mil)
* Please send your Gerber file(Preferably in Cam350,Gccam,Genesis2000,Pad2005,DXP,Power,Protel99se,Eagle) with quantity,processing demand and other requirements to ****@gmail.com or ****@hotmail.com
(In this procedure,please keep in touch with us and try to check your mail box everyday to avoid wasting production time.)
* Our manufacture time is 5-10 working days.Delivery time is 4-7 days to UK,US and AU.(Other countries or remote areas may take longer)
