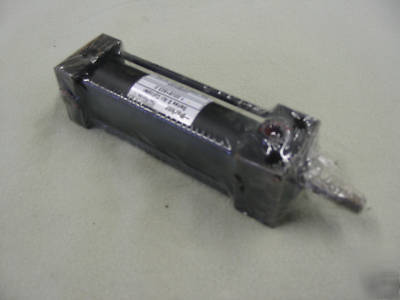

Air cylinder, tierod, 1" bore x 3" stroke, parker
AIR CYLINDER, TIE ROD STYLE 1" BORE X 3" STROKE *CYLINDER WALL IS BRASS*
PARKER SERIES S, MODEL #01.00 US1603.0
MOUNT, CAN BE MOUNTED FROM THE FRONT WITH 2 #8 SCREWS, FROM THE REAR WITH 2 #10 SCREWS AND FROM THE SIDE WITH 3 #10 SCREWS
PORTS, 1/8NPT PORTS ARE 90 DEGREES APART
MEASURMENTS, OVER ALL LENGTH 5 7/8", TOP TO BOTTOM OF END BLOCKS 4 3/4", SQUARE 1 3/8"
