Dc motor, gear box, tensioner clutch, & controls
From Surplus equipment sale at Hi Tech electronics Co.: We removed these units from 2 fiber Optic Cable Derailleur machines. They were used to play out 10 strands of fiber optic cable under controlled tension. This package includes

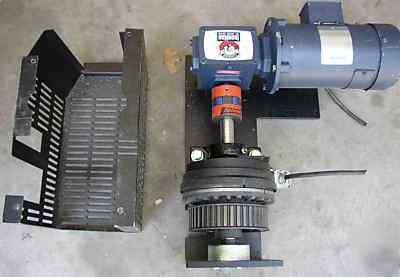

1 - Leeson permanent magnet DC motor Type DF rated 1/2 HP, 1750 RPM, 1.0 SF, for 40C Ambient with type F3 insulation, requiring 5 Amps at 90 volts DC at full load, Model C4D17FK1H, Catalogue No. 10801400,
1- Iron Man Gear Reducer (30: 1) rated at 0.472 HP with an output torque rating of 343 inch-pounds, Model No. BMQ8515-30-L-656, Cat. No U8150187.00,
1- Torque controlling clutch, Warner No. 5162-101-002,
1- DC Motor controller, Minarik Model RG500UA, 115 volt input, 10 A @ 90 V Out,

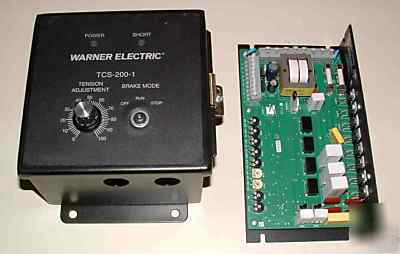

1 - Warner Electric Tension controller Model TCS-200-1,

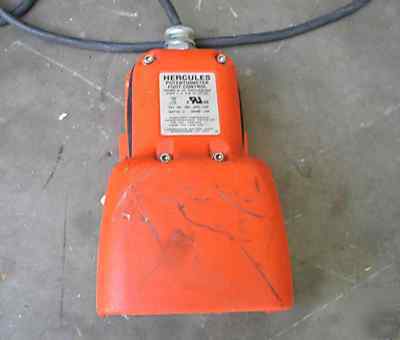

1 - Foot operated Potentiometer Hercules Cat. No 500-AHO-10K
